Seco Turning Insert C Shape Code T 2960843 | AIMS Industrial

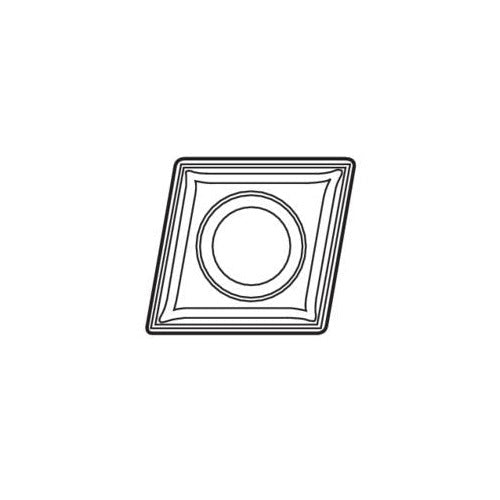

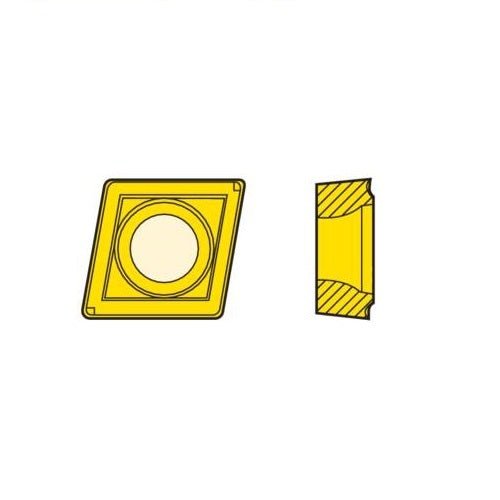

***Illustrations shown may vary from actual product***

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - FF1 7° Grade TP2501 ± 0.05/± 0.05mm CCMT060202-FF1 Pack of 10

Turning Insert C Shape Code T Insert Type - FF1 7° Grade TP2501

• C shape code
• T Insert Type.
• 7° insert side clearance angles.

TP2501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

FF1 Chipbreaker Programme

• Chipbreaker for positive inserts. Used to achieve a very fine finish when turning slender steel and stainless steel components.
• Indicative machining range: f = 0,05-0,30 mm/rev, ap = 0,2-2,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
