Seco Turning Insert C Shape Code 4.76 x | AIMS Industrial

***Illustrations shown may vary from actual product***

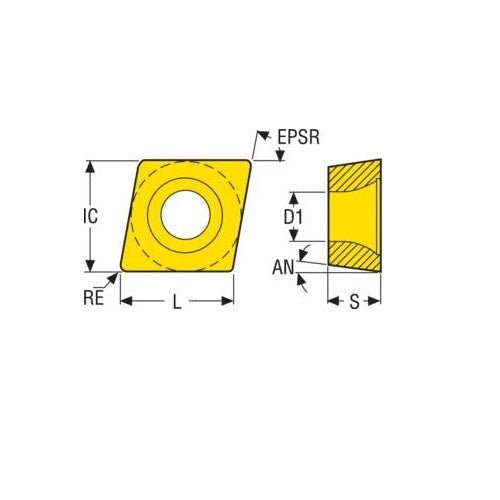

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm T Insert Type - W-F1 7° Grade TP2501 ± 0.13/± 0.08mm CCMT120404W-F1 Pack of 10

Turning Insert C Shape Code T Insert Type - W-F1 7° Grade TP2501 - ± 0.13/± 0.08mm Tolerance

• C shape code.
• T Insert Type.
• 7° insert side clearance angles.
• ± 0.13/± 0.08mm tolerance.

TP2501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

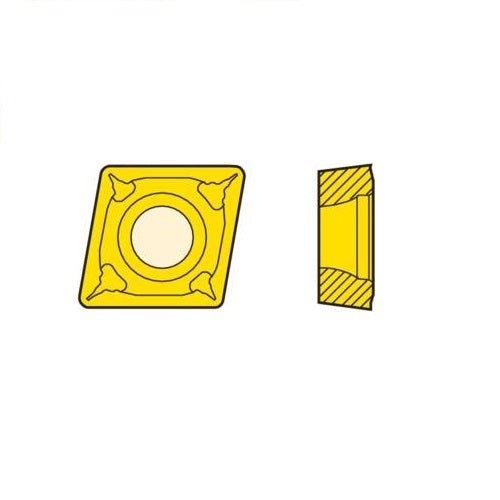

W-F1 Chipbreaker Programme

• A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
• Suitable for high feed rates at small depths of cut.
• Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
