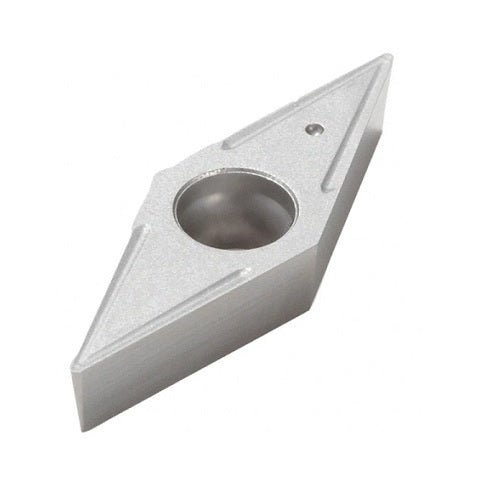

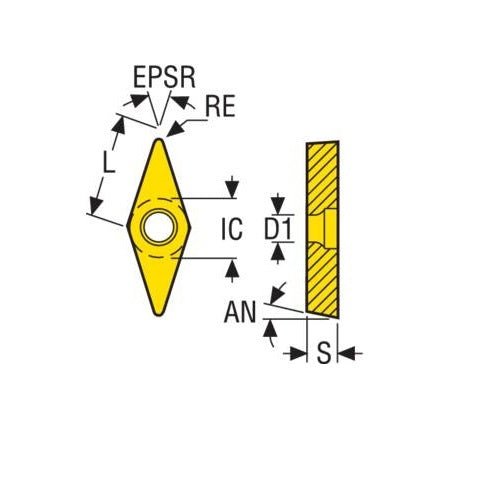

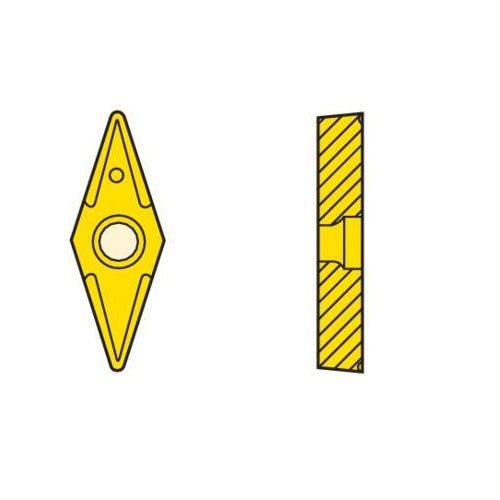

Seco Turning Insert V Shape Code 4.76 x 0.4 x 9.53mm T Insert Type - M3 5° Grade HX ± 0.13/± 0.025mm VBGT160404-M3 Pack of 5

Turning Insert V Shape Code T Insert Type - M3 5° Grade HX

• V shape code
• T Insert Type.
• 5° insert side clearance angles.

HX Insert Grade

• Uncoated.
• A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.

M3 Chipbreaker Programme

• A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
• Suitable for medium cuts in steel and stainless steel application including boring.
• Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
