Seco Turning Insert V Shape Code 4.76 x | AIMS Industrial

***Illustrations shown may vary from actual product***

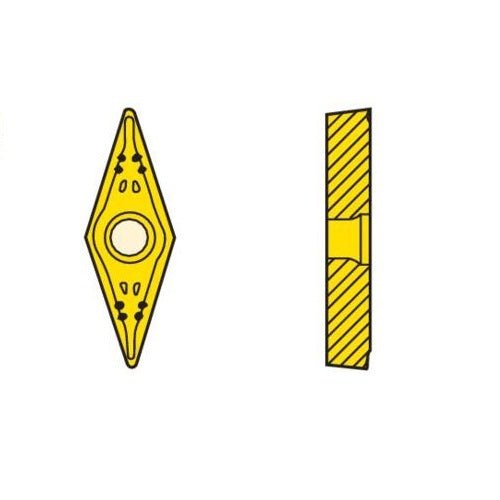

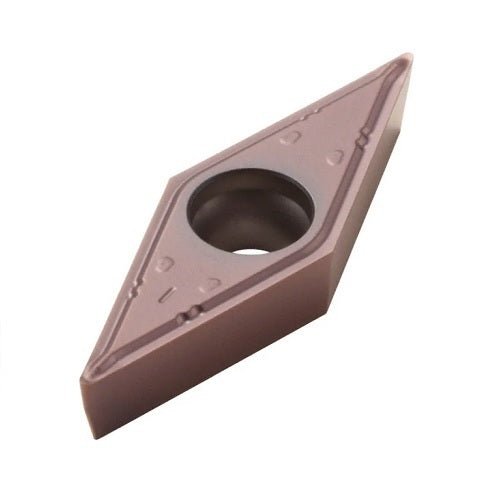

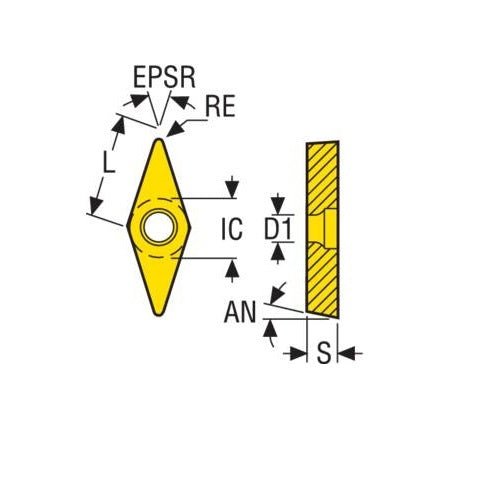

Seco Turning Insert V Shape Code 4.76 x 0.4 x 9.53mm T Insert Type - F1 5° Grade TH1000 ± 0.13/± 0.05mm VBMT160404-F1 Pack of 5

Turning Insert V Shape Code T Insert Type - F1 5° Grade TH1000

• V shape code
• T Insert Type.
• 5° insert side clearance angles.

TH1000 Insert Grade

• PVD Coated.
• A very hard super micro-grain grade intended for partly hardened steel components as well as generally workpiece materials such as superalloys and due to remarkable edge toughness it also provides high performance in interrupted cuts and hard-surface removal.
• Ti-Al-Si-N nanolaminate coating.

F1 Chipbreaker Programme

• Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
• Suitable for high feed rates at fine depths of cut in precision forgings and castings.
• Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
• Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
