Seco Turning Insert T Shape Code 74017379 | AIMS Industrial

***Illustrations shown may vary from actual product***

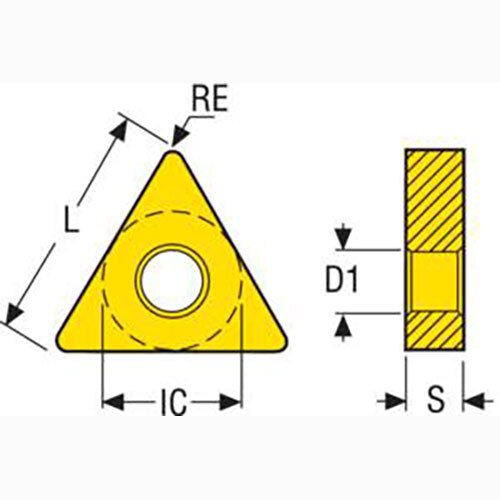

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MF3 Grade TP40 ± 0.13/± 0.05mm Tolerance TNMG160408-MF3,TP40 10pcs

Turning Insert TNMG Insert Style - MF3 Grade TP40

• T shape code.

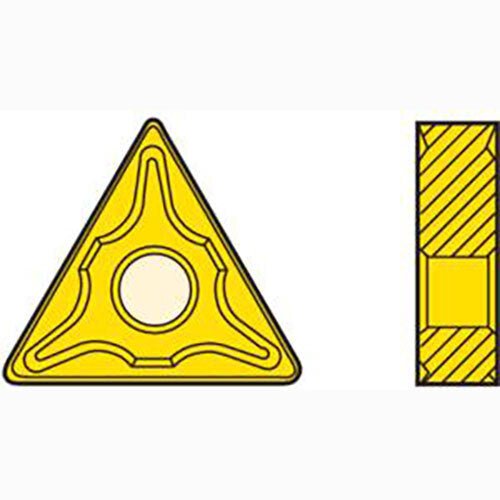

• G insert type, with hole and chip breaker on both faces.
• TP40 insert grade.

TP40 Insert Grade

• Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
• TiC/Ti(C,N) + TiN.

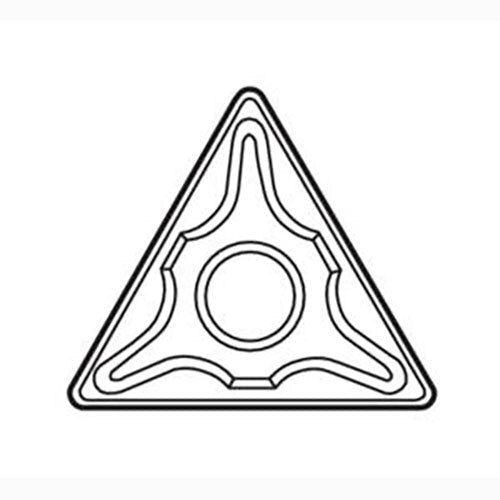

MF3 Chipbreaker Programme

• Chipbreaker with a positive cutting rake angle intended for moderately difficult stainless steel.
• The MF3 is also intended for light roughing in relatively soft, “tacky” steel and difficult to machine stainless steel if the depth of cut is limited.
• MF3 can also be used for finishing of cast iron.
• Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1–4 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
