Specifications
- AIMS SKU A0114172
- Brand Seco
- Model Number 02623572
- Barcode Number 23572026000100
- Net Weight (kg) 0.159
- Designation SD405-13.00/13.99-70-16R1

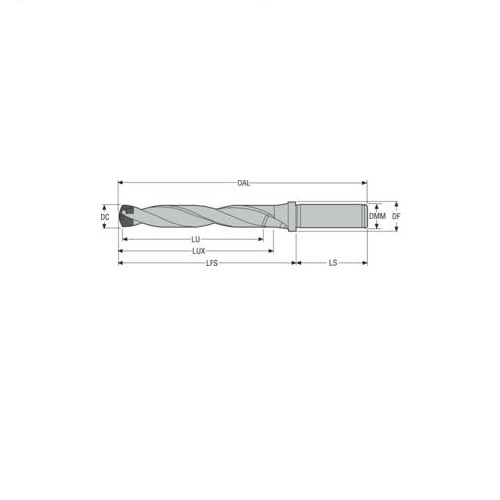

- Usable Length Max (LUX) mm 78.9
- Functional Length Secondary (LFS) mm 91.9
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Cutting Diameter Maximum (DCX) mm 14
- Flange Diameter (DF) mm 20
- Usable Length (LU) mm 70
- Shank Diameter (DMM) X Overall Length (OAL) mm 16 x 139.9
- Cutting Diameter Minimum (DCN) mm 13
- Shank Length (LS) mm 48
- Type Exchangeable Tip Drill
- Shank Type Cylindrical
SKU: A0114172

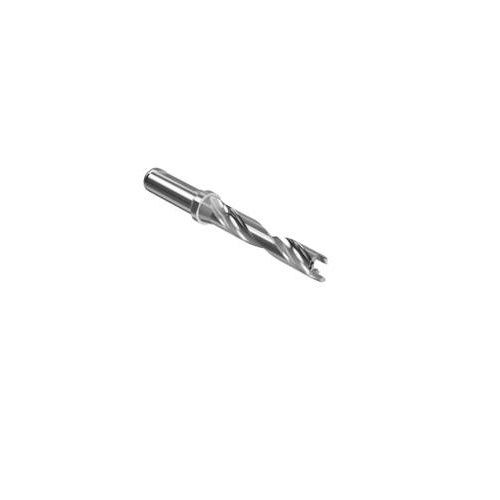

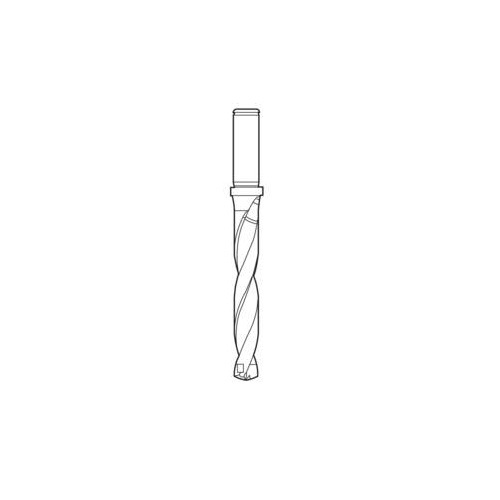

Seco Cylindrical SD405 Crownloc™ Plus Exchangeable Tip Drill 139.9 x 16mm SD405-13.00/13.99-70-16R1
Cylindrical Crownloc™ Plus Exchangeable Tip Drill
$517.66
SAVE $79.64 (13%)
