Specifications
- AIMS SKU A0113886
- Brand Seco
- Model Number 02466044
- Barcode Number 66044024000109
- Net Weight (kg) 0.326

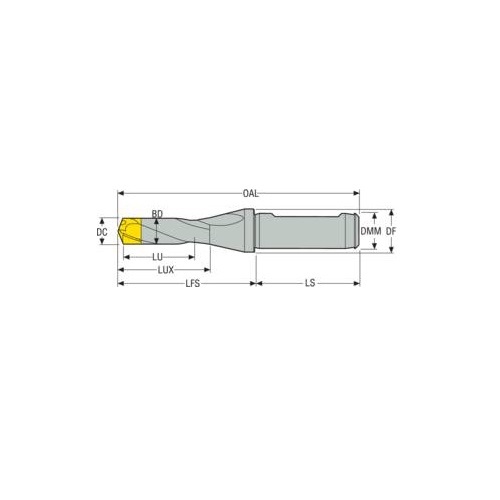

- Designation SD101-20.00/21.99-40-1000R7
- Functional Length Secondary (LFS) mm 73.5
- Cutting Diameter Minimum (DCN) mm 20
- Usable Length (LU) mm 40
- Overall Length (OL) mm 129.5
- Flange Diameter (DF) mm 31
- Body Diameter (BD) X Shank Diameter (DMM) mm 19.5 x 25.4
- Shank Length (LS) mm 56
- Cutting Diameter Maximum (dcx) 22
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Usable Length Maximum (LUX) mm 53.5
- Type SD101 Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0113886

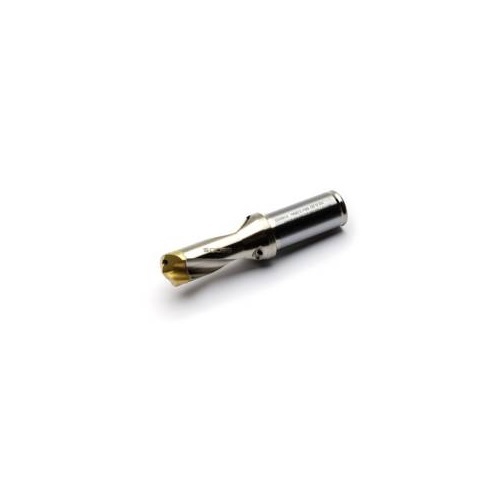

Seco SD101 Crownloc™ Exchangeable Tip Drill 19.5 x 25.4 x 129.5mm SD101-20.00/21.99-40-1000R7
SD101 Crownloc™ Exchangeable Tip Drill
$462.36
SAVE $71.14 (13%)
