Specifications
- AIMS SKU A0113951
- Brand Seco
- Model Number 02466052
- Barcode Number 66052024000104
- Net Weight (kg) 0.425

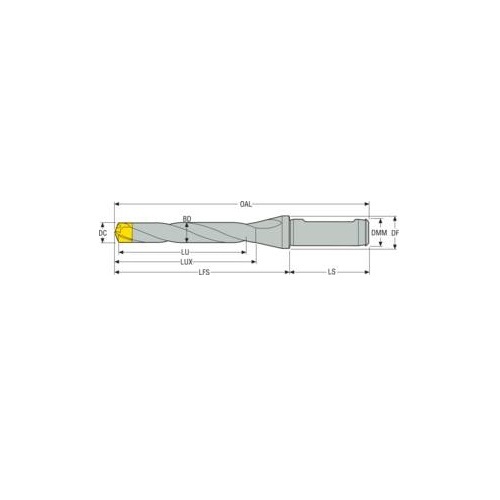

- Designation SD105-20.00/21.99-125-1000R7
- Functional Length Secondary (LFS) mm 158.5
- Cutting Diameter Minimum (DCN) mm 20
- Usable Length (LU) mm 125
- Overall Length (OL) mm 214.5
- Flange Diameter (DF) mm 31
- Body Diameter (BD) X Shank Diameter (DMM) mm 19.5 x 25.4
- Shank Length (LS) mm 56
- Cutting Diameter Maximum (dcx) 22
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Usable Length Maximum (LUX) mm 138.5
- Type SD105 Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0113951

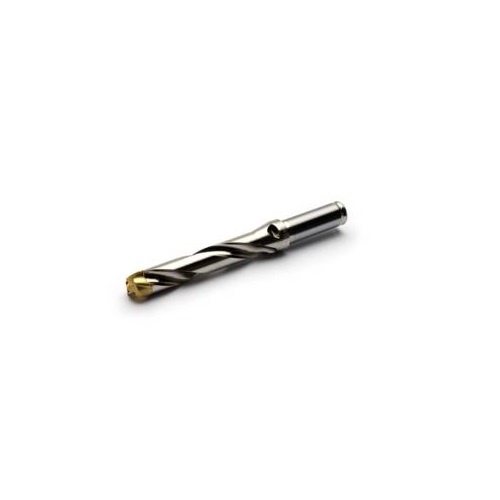

Seco SD105 Crownloc™ Exchangeable Tip Drill 19.5 x 25.4 x 214.5mm SD105-20.00/21.99-125-1000R7
SD105 Crownloc™ Exchangeable Tip Drill
$619.66
SAVE $95.34 (13%)
