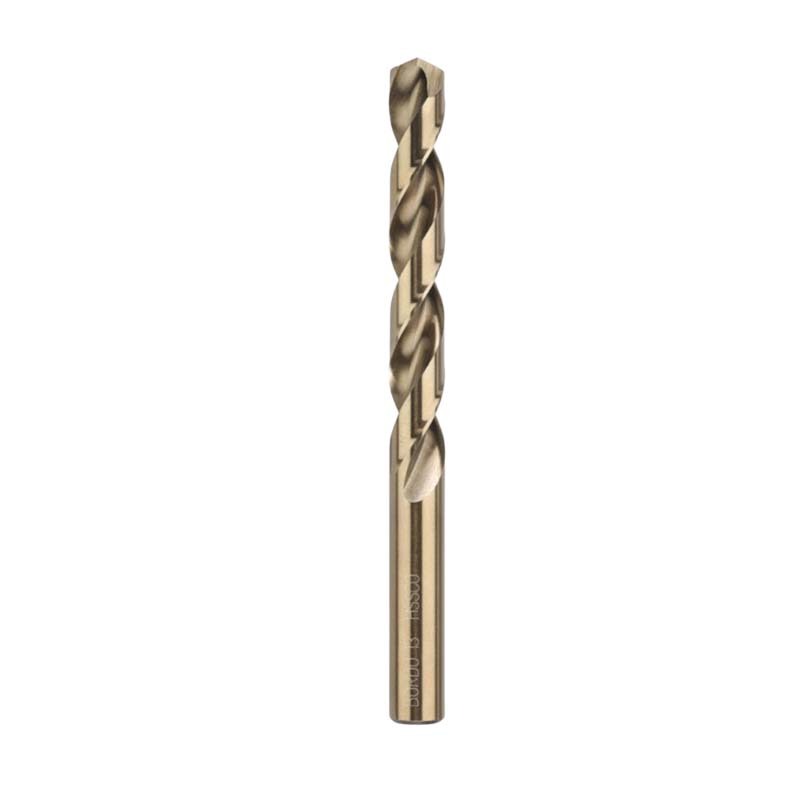

Bordo HSS Cobalt Jobber Drill Bit - 2011

Bordo HSS Cobalt Jobber Drill Bit - 2011

• DIN338
• HSS Cobalt Twist Drill
• Bordo Metric Cobalt Tough HSS-Co5 Twist Drills.
• 135º Split Point (crankshaft point).
• Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
• The 135° point should be used to cut harder steel materials especially in deep hole applications.
• In these situations it will produce thicker chips minimising work hardening of the cavity.
• Faster penetration reduces abrasion and friction along the cutting edges.
• Cobalt HSS Twist drills are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
• Bronze Finish (gold oxide) surface treatment. The metallic brown coloured low temperature temper treatment is normally only used on cobalt tools for identification purposes.

About 135° Split Point (crankshaft point)

• The split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
• The 135° point should be used to cut harder steel materials especially in deep hole applications. In these situations it will produce thicker chips minimising work hardening of the cavity.
• Faster penetration reduces abrasion and friction along the cutting edges.
• Size 1.00mm, 1.50mm and 1/16" are 135° standard chisel point.
