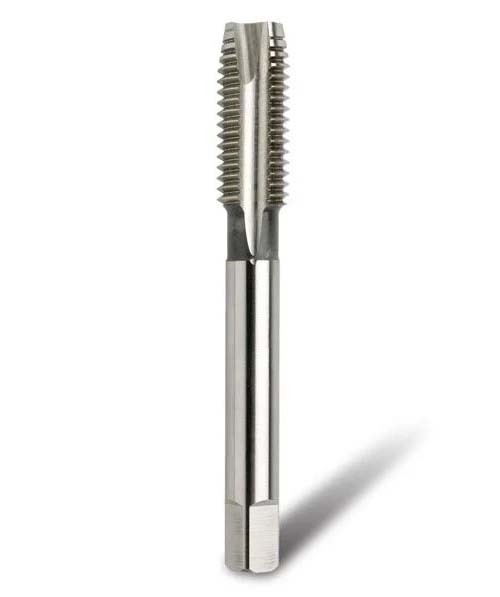

Bordo HSS Cobalt UNC Spiral Point Tap (3132)

Bordo HSS Cobalt UNC Spiral Point Tap (3132)

• HSS-Co5 (Cobalt) UNC Spiral Point (Gun Nose) machine tap.
• Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
• Gun nose taps have straight flutes supplemented by angular cutting faces at the lead.
• The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
• Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
• The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes.
• This allows a stronger cross section throughout the tap.
• Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
• The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
• The thread is described by its major diameter and the number of threads per inch of length (TPI).
• This thread series is commonly used in the mass production of bolts, screws and nuts.
• It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
• It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
