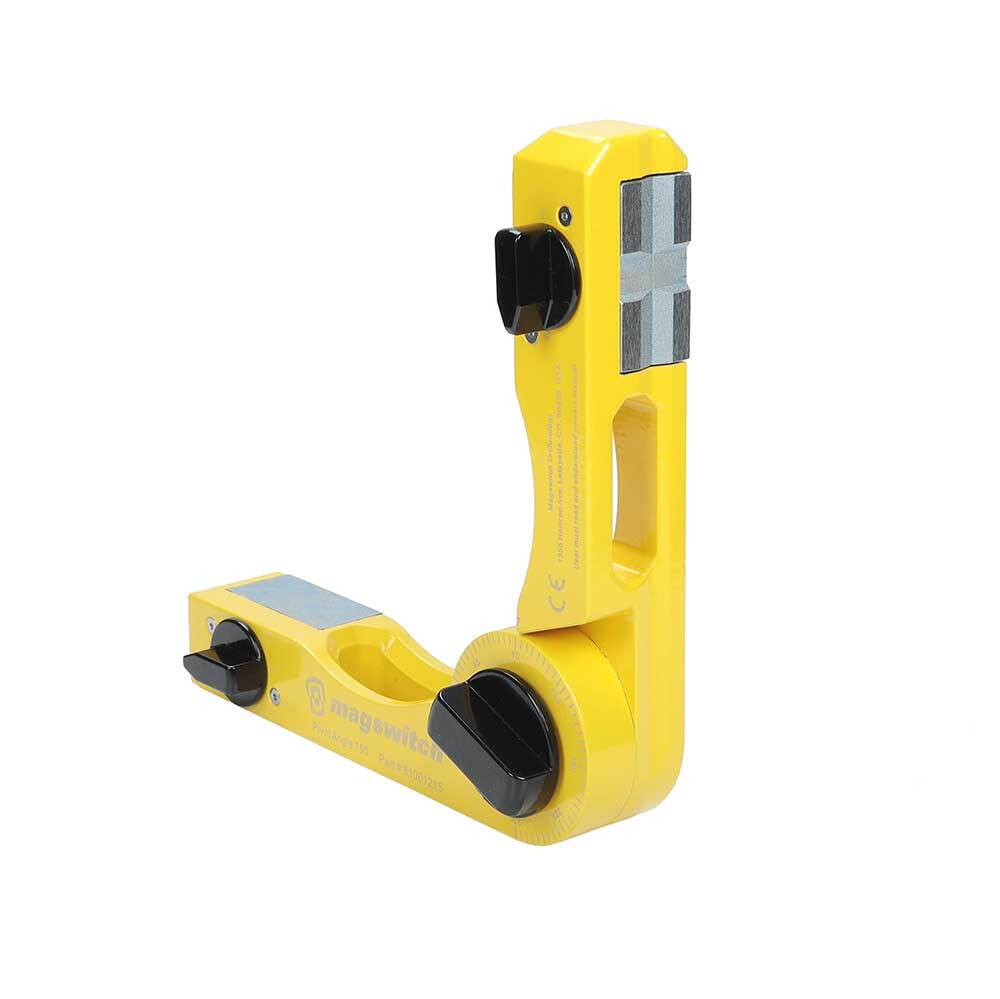

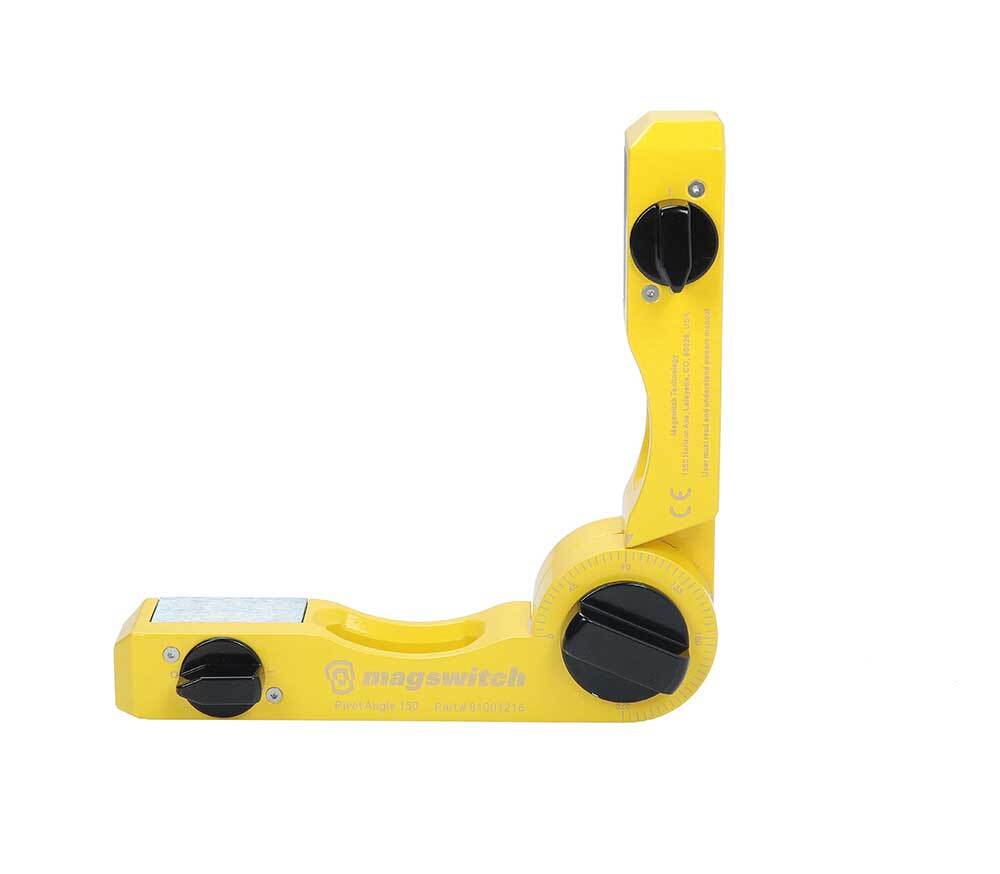

Magswitch Pivot Angle 150 Max 215.5 x 66 x 53.4mm - 81001215

Magswitch Pivot Angle 150 Max - 81001215

• The Magswitch Pivot Angle offers a range of angles from 0 to 270 degrees.
• Each axis features a Magswitch with a 182lbs (82.6kg) hold capability.
• A single pivot point is located on the elbow.
• The elbow joint locks and unlocks quickly with a thumb screw.
• The dial on the elbow features indicators every 9 degrees.

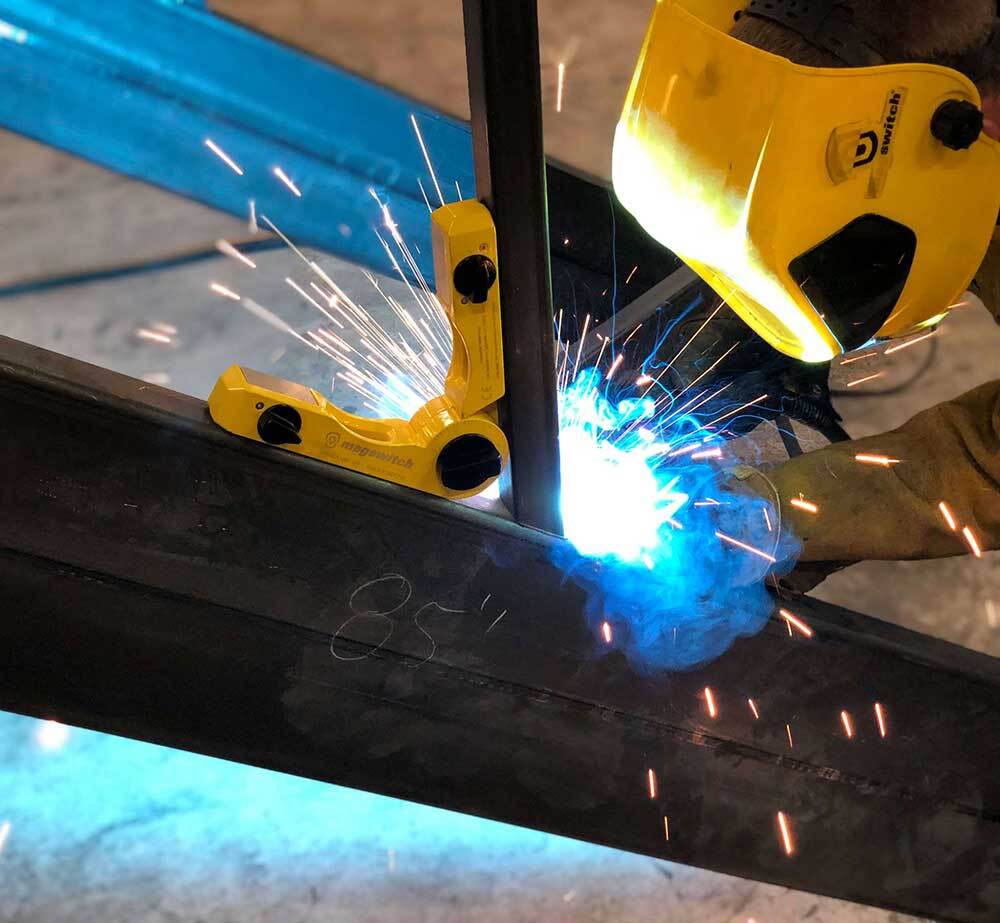

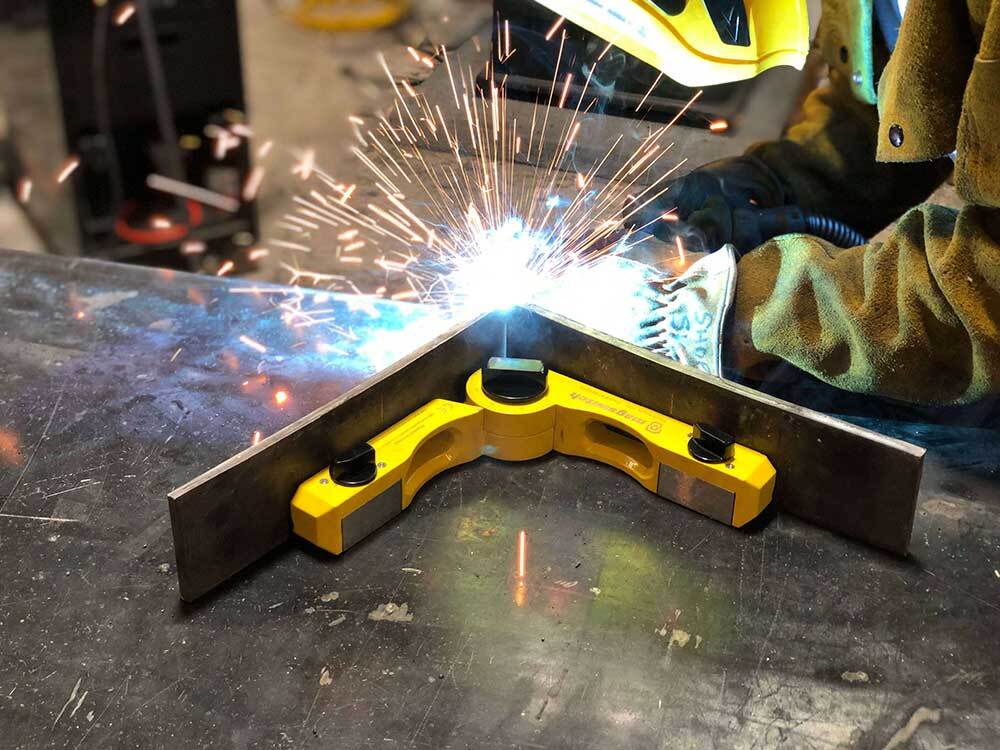

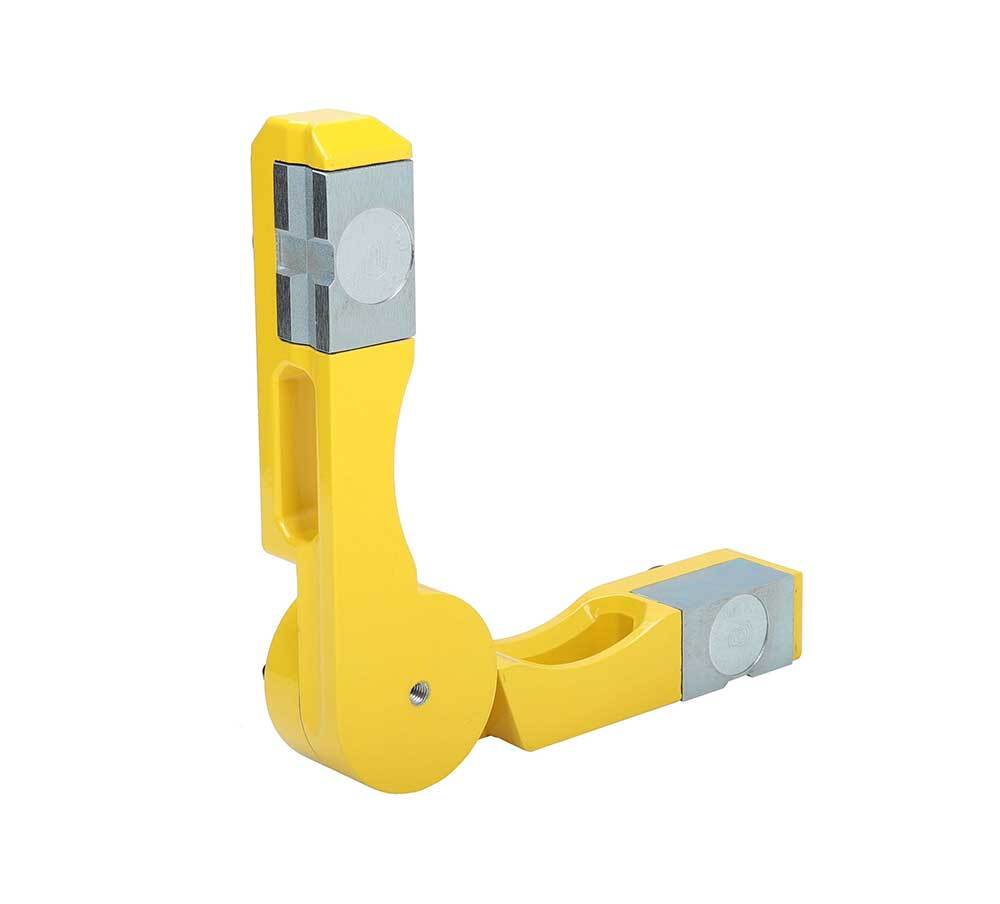

• On each axis a Magswitch magnetic tool is exposed on a side to enable the tool to secure to a table or wall, while simultaneously holding the work piece.
• Perfect for repetitive work on uncommon angles.

Specifications

• Nominal Maximum Breakaway Force: 182 lbs / 83kg
• Nominal Maximum Shear: 25.3 lbs / 11kg
• Full Saturation Thickness: 3/16 in / 4.8mm
• Overall Height (Max): 2.1in / 53.4mm
• Overall Length: 8.5in / 215.5mm
• Overall Width: 2.6in / 66.0mm
• Net Weight: 3.3 lbs / 1.5kg
• Magnetic Pole Footprint: 1.0 x 2.1in / 26.4 x 54mm

Note: WARNING! Do Not Operate Unless In Contact With Ferrous Target
