Seco SD22 0.1 x 0.6mm Solid Carbide Micro Drill Bit SD22-0.10-0.20-3R1

Seco SD22 0.15 x 0.6mm Solid Carbide Micro Drill Bit SD22-0.15-0.30-3R1

Seco SD22 0.2 x 0.8mm Solid Carbide Micro Drill Bit SD22-0.20-0.40-3R1

Seco SD22 0.25 x 0.9mm Solid Carbide Micro Drill Bit SD22-0.25-0.50-3R1

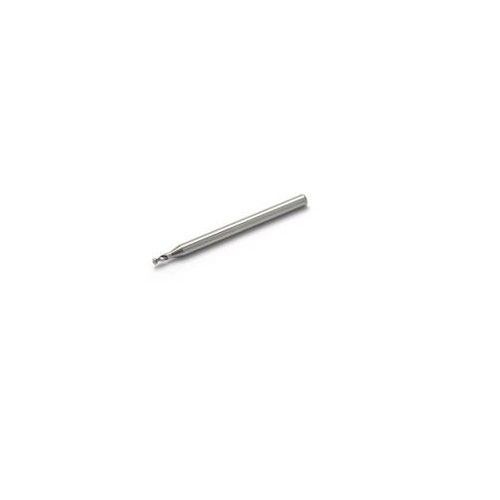

Seco SD22 0.3 x 1.2mm Solid Carbide Micro Drill Bit SD22-0.30-0.60-3R1

Seco SD22 0.35 x 1.4mm Solid Carbide Micro Drill Bit SD22-0.35-0.70-3R1

Seco SD22 0.4 x 1.6mm Solid Carbide Micro Drill Bit SD22-0.40-0.80-3R1

Seco SD22 0.45 x 1.6mm Solid Carbide Micro Drill Bit SD22-0.45-0.90-3R1

Seco SD22 0.5 x 1.7mm Solid Carbide Micro Drill Bit SD22-0.50-1.00-3R1

Seco SD22 0.55 x 1.8mm Solid Carbide Micro Drill Bit SD22-0.55-1.10-3R1

Seco SD22 0.6 x 1.9mm Solid Carbide Micro Drill Bit SD22-0.60-1.20-3R1

Seco SD22 0.65 x 2mm Solid Carbide Micro Drill Bit SD22-0.65-1.30-3R1

Seco SD22 0.7 x 2.1mm Solid Carbide Micro Drill Bit SD22-0.70-1.40-3R1

Seco SD22 0.75 x 2.2mm Solid Carbide Micro Drill Bit SD22-0.75-1.50-3R1

Seco SD22 0.8 x 2.3mm Solid Carbide Micro Drill Bit SD22-0.80-1.60-3R1

Seco SD22 0.85 x 2.4mm Solid Carbide Micro Drill Bit SD22-0.85-1.70-3R1

Seco SD22 0.9 x 2.5mm Solid Carbide Micro Drill Bit SD22-0.90-1.80-3R1

Seco SD22 0.95 x 2.6mm Solid Carbide Micro Drill Bit SD22-0.95-1.90-3R1

Seco SD22 1 x 2.7mm Solid Carbide Micro Drill Bit SD22-1.00-2.00-3R1

Seco SD22 1.1 x 3.6mm Solid Carbide Micro Drill Bit SD22-1.10-2.20-3R1

Seco SD22 1.2 x 3.8mm Solid Carbide Micro Drill Bit SD22-1.20-2.40-3R1

Seco SD22 1.3 x 4.3mm Solid Carbide Micro Drill Bit SD22-1.30-2.60-3R1

Seco SD22 1.4 x 4.5mm Solid Carbide Micro Drill Bit SD22-1.40-2.80-3R1

Seco SD22 1.5 x 4.7mm Solid Carbide Micro Drill Bit SD22-1.50-3.00-3R1

Seco SD22 1.6 x 5.2mm Solid Carbide Micro Drill Bit SD22-1.60-3.20-3R1

Seco SD22 1.7 x 5.4mm Solid Carbide Micro Drill Bit SD22-1.70-3.40-3R1

Seco SD22 1.8 x 5.6mm Solid Carbide Micro Drill Bit SD22-1.80-3.60-3R1

Seco SD22 1.9 x 5.8mm Solid Carbide Micro Drill Bit SD22-1.90-3.80-3R1

Seco SD22 2 x 6mm Solid Carbide Micro Drill Bit SD22-2.00-4.00-3R1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Seco SD22 Solid Carbide Micro Drill Bit

SKU: A0113175

Type: Drill Bit

$46.18

Inc. GST

🔧Carbide Construction

⚙SD22 Solid Micro Drill

📐Multiple Sizes Available

🔩Accurate Drilling Performance

🏗CNC & Precision Machining

☑High Speed Operation Rated

Available

Product Highlights −

***Illustrations shown may vary from actual product***

SD22 Solid Carbide Micro Drill Bit

SD22 is a pilot micro drill for drilling depths of up to 2xD with diameters in steps of 0.01 mm and a diameter tolerance of 0/+0.005 mm.
The shanks are 3 mm with an h6 tolerance.
SD22 drills are uncoated and have a 130-degree point angle.

About SD22 and SD26 Drills:

SD22 and SD26 drills are capable of delivering dramatic performance increases compared to traditional HSS drills often used today.
These improvements include much higher productivity, significantly increased tool life, higher hole quality and lower cost per component.
Diameter range 0.1 – 2 mm (.004 - .078 inch).
These families were designed specifically for applications in the automotive and medical industries, as well as for small part production in the general engineering industry.
