Sutton D109SM3 25 piece Cobalt Metric Jobber Drill Set Colour Temp1

Sutton D109SM3 25 piece Cobalt Metric Jobber Drill Set Colour Temp2

Sutton D109SM3 25 piece Cobalt Metric Jobber Drill Set Colour Temp3

Sutton D109SM3 25 piece Cobalt Metric Jobber Drill Set Colour Temp4

Specifications +

Range (mm): 1.0-13.0 x 0.5
Pack Quantity: 25
Designation: Tough Materials
Material: High Speed Steel Cobalt
Finish: Colour Temp
Helix Angle: R25
Point Angle: 135°
Point Form: Form C
Standard: DIN 338

Application +

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)- 90 HB

Features & Benefits +

135° split point (drills > 2mm & 3/32) enables accurate positioning and less drilling pressure
Thick core for increased rigidity in hard materials
Precision engineered parallel shank for accurate hole size
Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
Colour Tempered surface finish enables identification of cobalt tool material

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

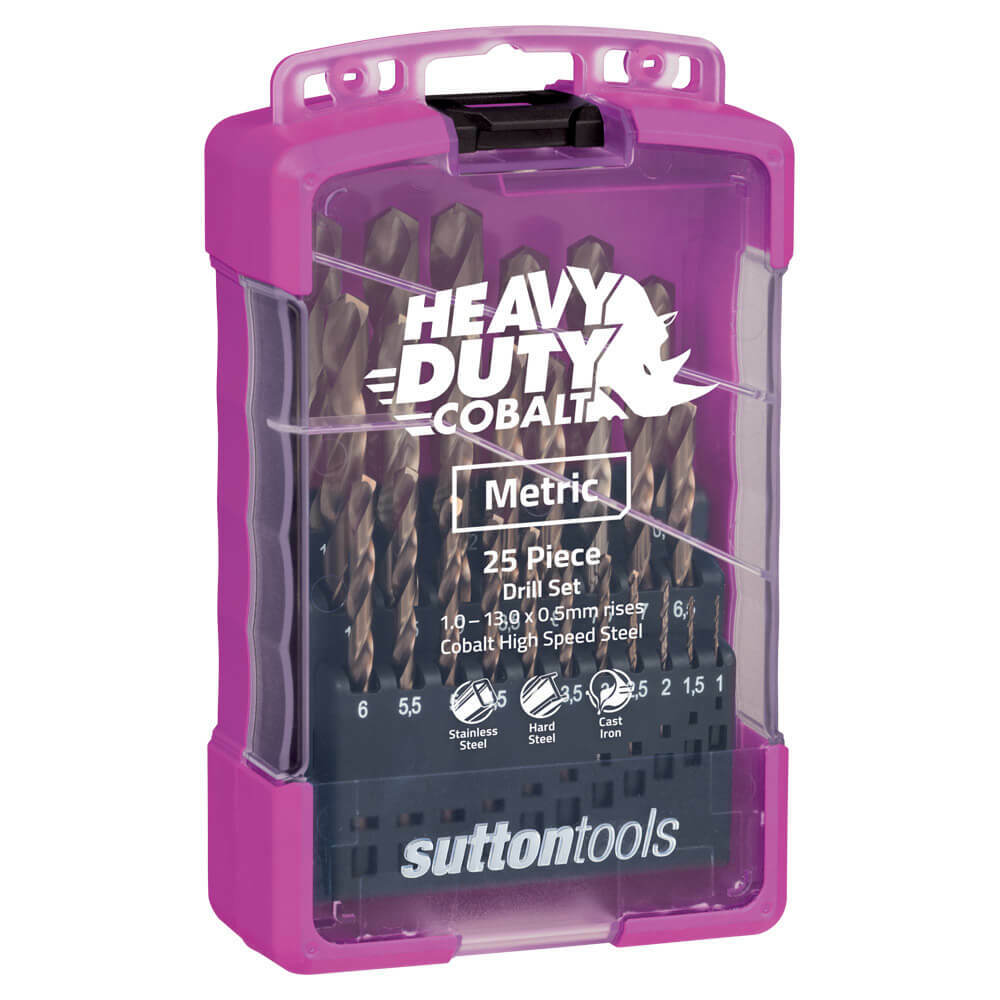

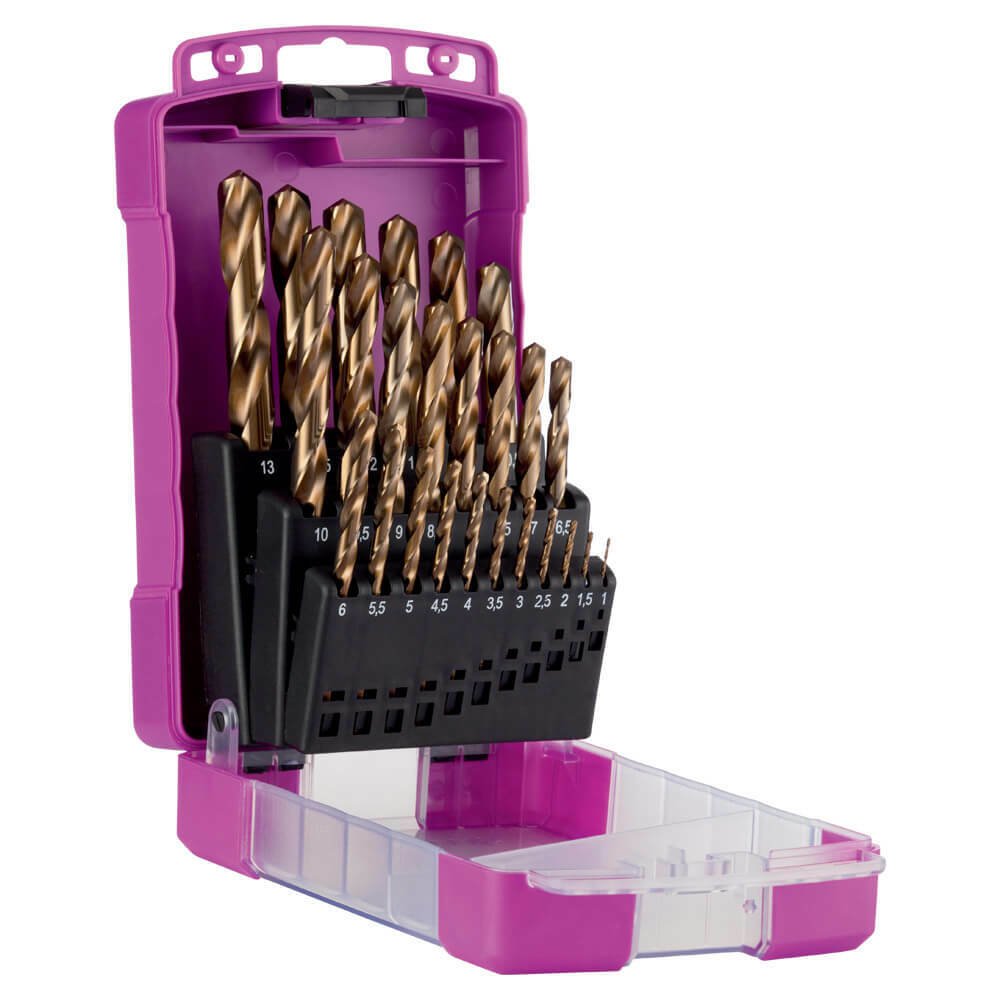

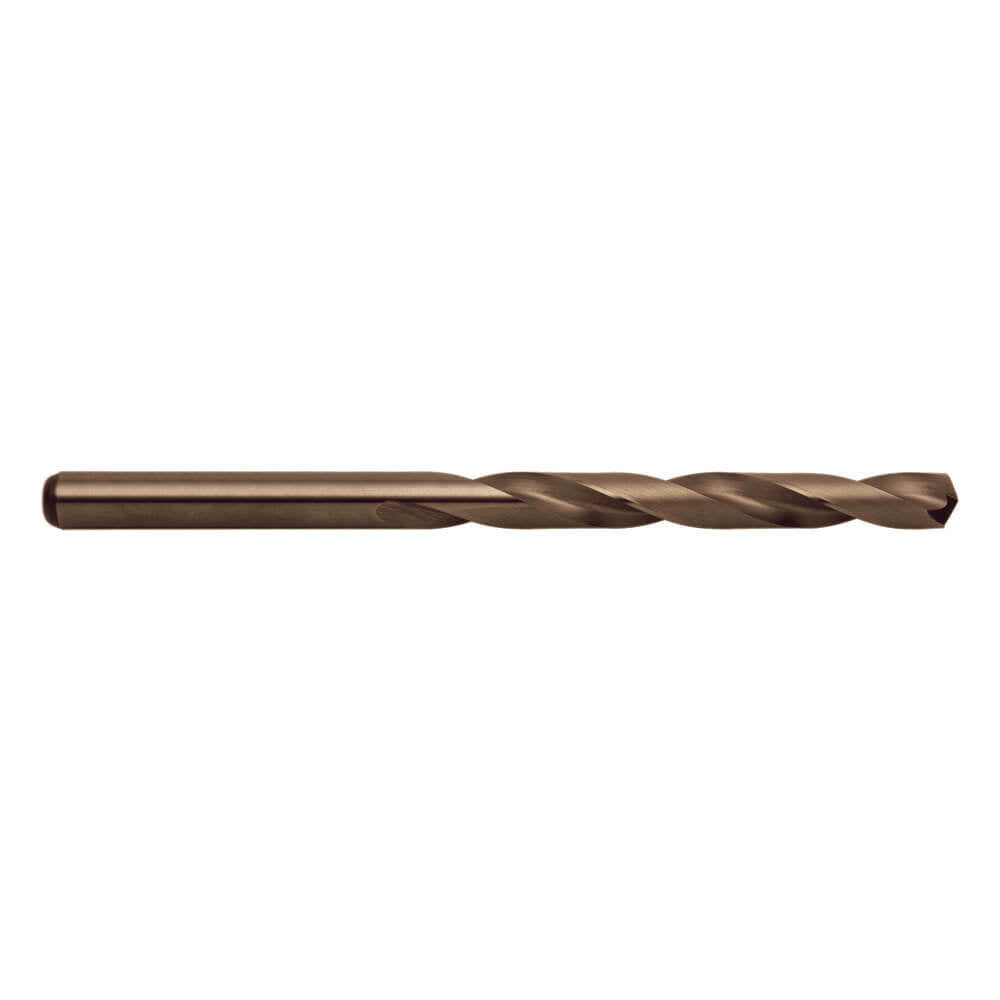

Sutton D109SM3 25 piece Cobalt Metric Jobber Drill Set Colour Temp

SKU: A0003773

Type: Jobber Drill Bit

$495.85

$495.85 ~~$708.36~~

Inc. GST

🔧Cobalt Construction

⚙Sutton piece Metric Jobber

📐Supplied as 25 Piece

🔩Accurate Drilling Performance

🏗Metalworking & Manufacturing

☑Precision Engineered Tolerances

Available

Product Highlights −

Sutton Tools Heavy Duty Cobalt jobber drills are industrial quality for drilling materials that have high hardness and tensile strength such as cast iron, bronze, hardened steel & stainless steel

These drill bits feature a thick core for increased rigidity in hard materials

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Drill-Bits-and-Drill-Sets-Catalogue

Specifications +

Range (mm): 1.0-13.0 x 0.5
Pack Quantity: 25
Designation: Tough Materials
Material: High Speed Steel Cobalt
Finish: Colour Temp
Helix Angle: R25
Point Angle: 135°
Point Form: Form C
Standard: DIN 338

Application +

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)- 90 HB

Features & Benefits +

135° split point (drills > 2mm & 3/32) enables accurate positioning and less drilling pressure
Thick core for increased rigidity in hard materials
Precision engineered parallel shank for accurate hole size
Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
Colour Tempered surface finish enables identification of cobalt tool material
