Save 30%

Sutton D310 Carbide Drill Bit - Metric - 3xD - R15 NH - VHM - TiCN

Sutton D310 Carbide Drill Bit - Metric - 3xD - R15 NH - VHM - TiCN

SKU: A0007132

Type: Drill Bit

$43.90
$43.90 $62.72
Inc. GST
🔧Professional Grade Construction
⚙Sutton Drill Bit Metric
📐Multiple Sizes Available
🔩Accurate Drilling Performance
🏗Metalworking & Manufacturing
☑Australian Made Quality

Available

Product Highlights −
  • Rigid twist drill with slow spiral 15 degree flutes
  • Suitable for harder steel, tool steel and cast iron

Resources

  • Designation: NH
  • Material: VHM
  • Finish: TiCN
  • Maximum Cut Depth: 3XD
  • Shank Form: HA
  • Helix Angle: R15
  • X:als
  • Point Tolerance: m7
  • Shank Tolerance: h6

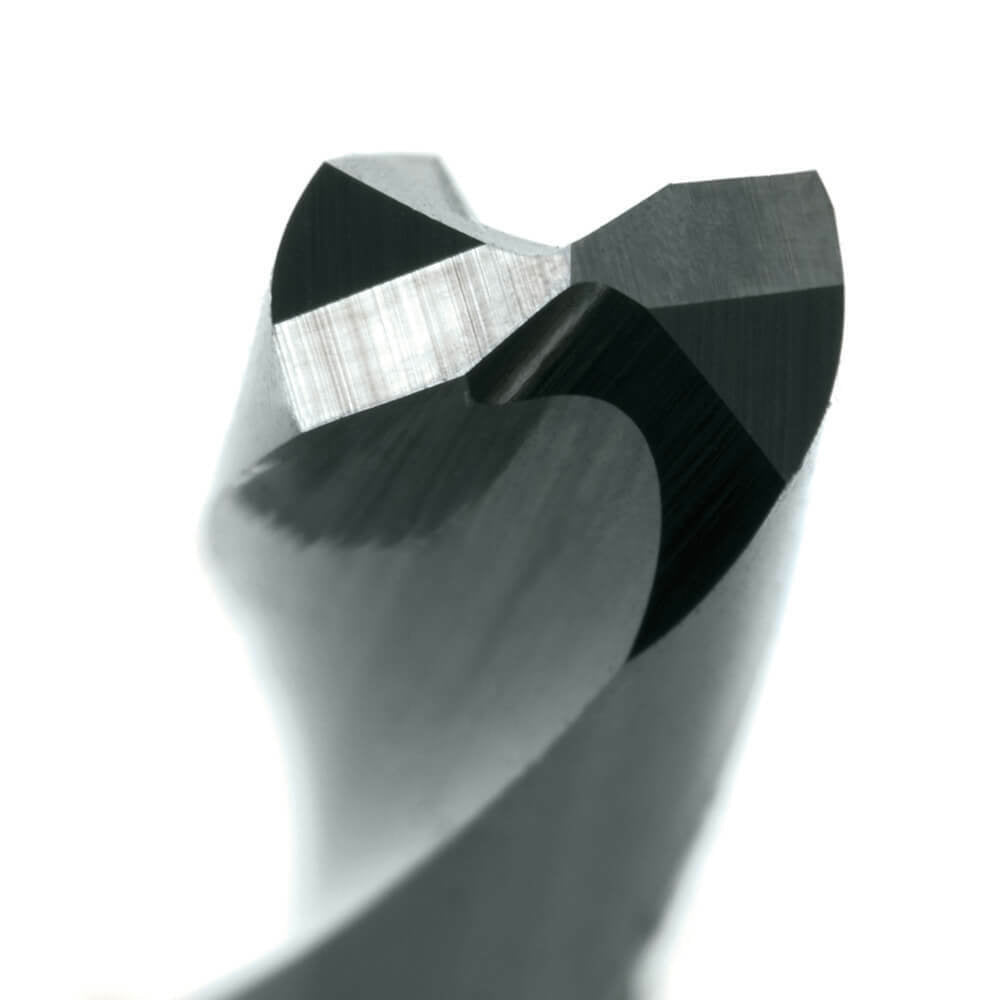

  • Point Type: 135° 4 Facet Form C
  • Cutting Edges: ul
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
