Sutton T386 Metric Straight Flute Tap - Bottoming - HSS 1
Sutton T386 Metric Straight Flute Tap - Bottoming - HSS 2
Sutton T3860200 Metric M2 x 0.4 Straight Flute Tap - Bottoming - HSS
Sutton T3860250 Metric M2.5 x 0.45 Straight Flute Tap - Bottoming - HSS
Sutton T3860300 Metric M3 x 0.5 Straight Flute Tap - Bottoming - HSS
Sutton T3860350 Metric M3.5 x 0.6 Straight Flute Tap - Bottoming - HSS
Sutton T3860400 Metric M4 x 0.7 Straight Flute Tap - Bottoming - HSS
Sutton T3860450 Metric M4.5 x 0.75 Straight Flute Tap - Bottoming - HSS
Sutton T3860500 Metric M5 x 0.8 Straight Flute Tap - Bottoming - HSS
Sutton T3860600 Metric M6 x 1 Straight Flute Tap - Bottoming - HSS
Sutton T3860700 Metric M7 x 1 Straight Flute Tap - Bottoming - HSS
Sutton T3860800 Metric M8 x 1.25 Straight Flute Tap - Bottoming - HSS
Sutton T3860900 Metric M9 x 1.25 Straight Flute Tap - Bottoming - HSS
Sutton T3861000 Metric M10 x 1.5 Straight Flute Tap - Bottoming - HSS
Sutton T3861100 Metric M11 x 1.5 Straight Flute Tap - Bottoming - HSS

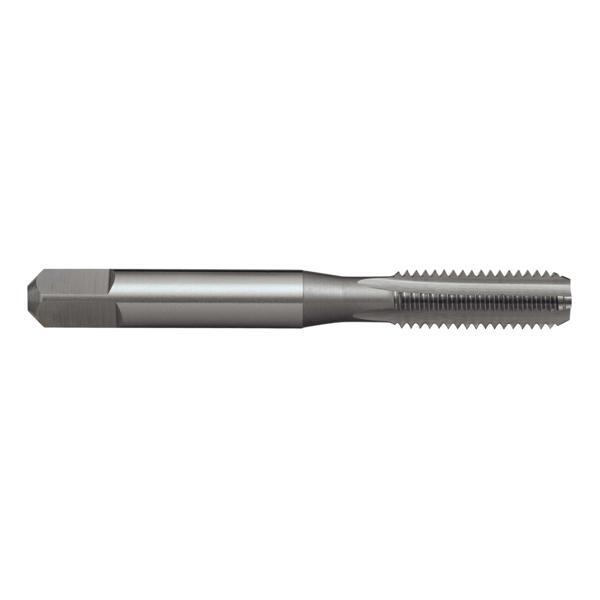

Sutton T3861200 Metric M12 x 1.75 Straight Flute Tap - Bottoming - HSS
Sutton T3861400 Metric M14 x 2 Straight Flute Tap - Bottoming - HSS
Sutton T3861600 Metric M16 x 2 Straight Flute Tap - Bottoming - HSS
Sutton T3861800 Metric M18 x 2.5 Straight Flute Tap - Bottoming - HSS
Sutton T3862000 Metric M20 x 2.5 Straight Flute Tap - Bottoming - HSS
Sutton T3862200 Metric M22 x 2.5 Straight Flute Tap - Bottoming - HSS
Sutton T3862400 Metric M24 x 3 Straight Flute Tap - Bottoming - HSS
Sutton T3862700 Metric M27 x 3 Straight Flute Tap - Bottoming - HSS
Sutton T3863000 Metric M30 x 3.5 Straight Flute Tap - Bottoming - HSS
Sutton T3863300 Metric M33 x 3.5 Straight Flute Tap - Bottoming - HSS
Sutton T3863600 Metric M36 x 4 Straight Flute Tap - Bottoming - HSS
Sutton T3863900 Metric M39 x 4 Straight Flute Tap - Bottoming - HSS
Sutton T3864200 Metric M42 x 4.5 Straight Flute Tap - Bottoming - HSS
Sutton T3864500 Metric M45 x 4.5 Straight Flute Tap - Bottoming - HSS

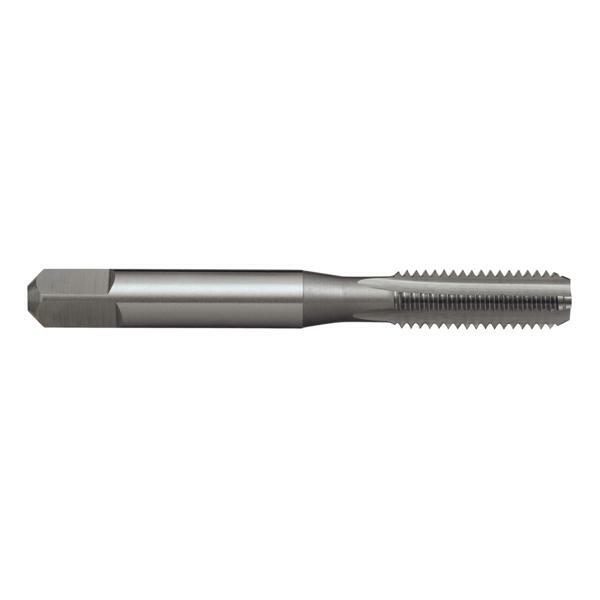

Sutton T3864800 Metric M48 x 5 Straight Flute Tap - Bottoming - HSS
Sutton T3865200 Metric M52 x 5 Straight Flute Tap - Bottoming - HSS
Sutton T386 Metric Straight Flute Tap - Bottoming - HSS 1
Sutton T386 Metric Straight Flute Tap - Bottoming - HSS 2
Sutton T3860200 Metric M2 x 0.4 Straight Flute Tap - Bottoming - HSS
Sutton T3860250 Metric M2.5 x 0.45 Straight Flute Tap - Bottoming - HSS
Sutton T3860300 Metric M3 x 0.5 Straight Flute Tap - Bottoming - HSS
Sutton T3860350 Metric M3.5 x 0.6 Straight Flute Tap - Bottoming - HSS
Sutton T3860400 Metric M4 x 0.7 Straight Flute Tap - Bottoming - HSS
Sutton T3860450 Metric M4.5 x 0.75 Straight Flute Tap - Bottoming - HSS
Sutton T3860500 Metric M5 x 0.8 Straight Flute Tap - Bottoming - HSS
Sutton T3860600 Metric M6 x 1 Straight Flute Tap - Bottoming - HSS
Sutton T3860700 Metric M7 x 1 Straight Flute Tap - Bottoming - HSS
Sutton T3860800 Metric M8 x 1.25 Straight Flute Tap - Bottoming - HSS
Sutton T3860900 Metric M9 x 1.25 Straight Flute Tap - Bottoming - HSS
Sutton T3861000 Metric M10 x 1.5 Straight Flute Tap - Bottoming - HSS
Sutton T3861100 Metric M11 x 1.5 Straight Flute Tap - Bottoming - HSS
Sutton T3861200 Metric M12 x 1.75 Straight Flute Tap - Bottoming - HSS
Sutton T3861400 Metric M14 x 2 Straight Flute Tap - Bottoming - HSS
Sutton T3861600 Metric M16 x 2 Straight Flute Tap - Bottoming - HSS
Sutton T3861800 Metric M18 x 2.5 Straight Flute Tap - Bottoming - HSS
Sutton T3862000 Metric M20 x 2.5 Straight Flute Tap - Bottoming - HSS
Sutton T3862200 Metric M22 x 2.5 Straight Flute Tap - Bottoming - HSS
Sutton T3862400 Metric M24 x 3 Straight Flute Tap - Bottoming - HSS
Sutton T3862700 Metric M27 x 3 Straight Flute Tap - Bottoming - HSS
Sutton T3863000 Metric M30 x 3.5 Straight Flute Tap - Bottoming - HSS
Sutton T3863300 Metric M33 x 3.5 Straight Flute Tap - Bottoming - HSS
Sutton T3863600 Metric M36 x 4 Straight Flute Tap - Bottoming - HSS
Sutton T3863900 Metric M39 x 4 Straight Flute Tap - Bottoming - HSS
Sutton T3864200 Metric M42 x 4.5 Straight Flute Tap - Bottoming - HSS
Sutton T3864500 Metric M45 x 4.5 Straight Flute Tap - Bottoming - HSS
Sutton T3864800 Metric M48 x 5 Straight Flute Tap - Bottoming - HSS
Sutton T3865200 Metric M52 x 5 Straight Flute Tap - Bottoming - HSS
Save 30%

Sutton T386 Metric Straight Flute Tap - Bottoming - HSS

Sutton T386 Metric Straight Flute Tap - Bottoming - HSS

SKU: A0014803

Type: Threading Die

$27.14
$27.14 $38.78
Inc. GST
⚙High Speed Steel (HSS)
⚙Sutton Metric Straight Flute
📐Multiple Sizes Available
🔩Precise Thread Cutting
🏗Metalworking & Manufacturing
☑High Speed Operation Rated

Available

Product Highlights −

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
