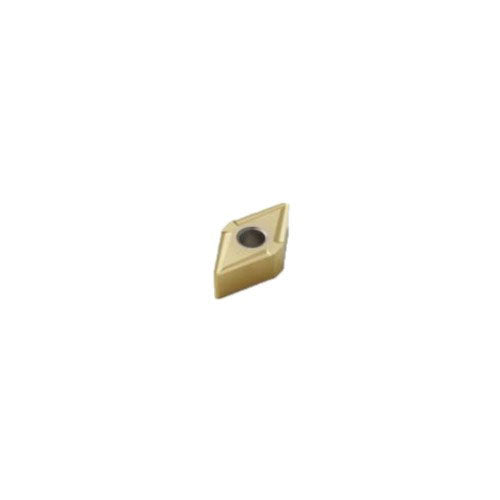

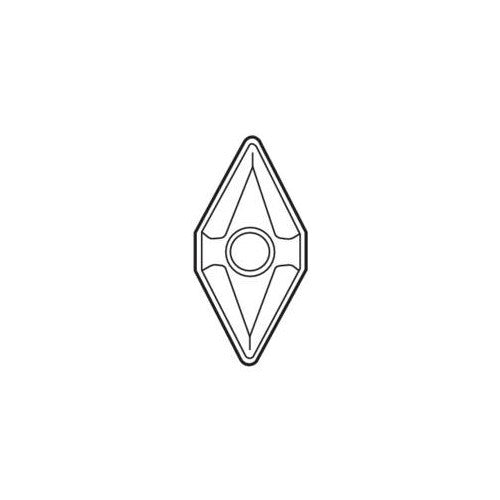

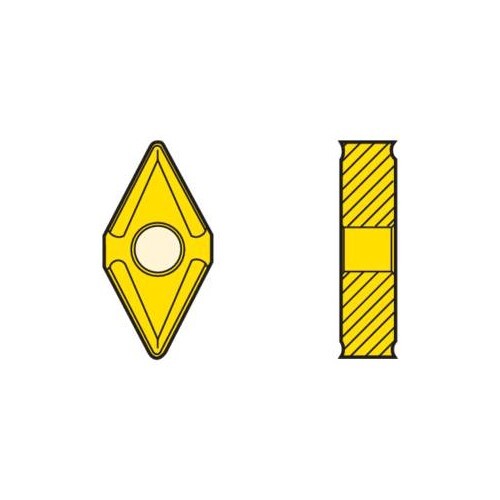

Turning Insert DNMG Insert Style - MR3 Grade CP500

***Illustrations shown may vary from actual product***

Seco Turning Insert D Shape Code 6.35 x 0.8 x 12.7mm G Insert Type - MR3 Grade CP500 ± 0.13/± 0.05mm Tolerance DNMG150608-MR3,CP500 10pcs

Turning Insert DNMG Insert Style - MR3 Grade CP500

• D shape code.
• G insert type, with hole and chip breaker on both faces.
• CP500 insert grade.

CP500 Insert Grade

• Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
• Especially suitable in intermittent cuts.
• (Ti, Al)N + TiN.

MR3 Chipbreaker Programme

• Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
• Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
• Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
