Description

TechTop’s TAI aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

As standard, TechTop’s TAI series electric motors are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0098179
  • Brand TechTop
  • Model Number TA2A0093TAI
  • Poles 2
  • Mounting Type Foot-Mounted
  • Base RPM 2715
  • IEC Frame Size 56 A
  • Shaft Diameter 9 mm
  • Mounting Position B3
  • Group Code Techtop-TAI-0.09kw
  • Type Three Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.09
  • Rated Load (HP) 0.12
  • Series Techtop TAI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098179

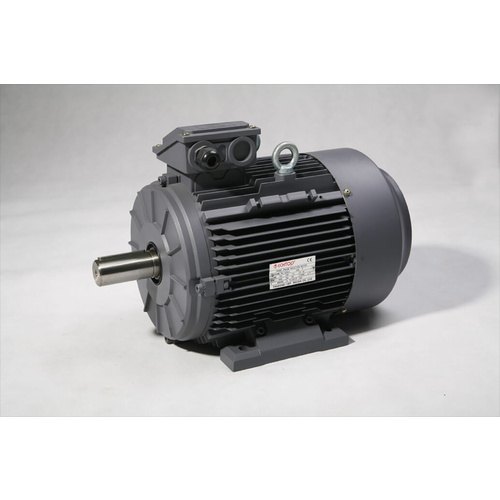

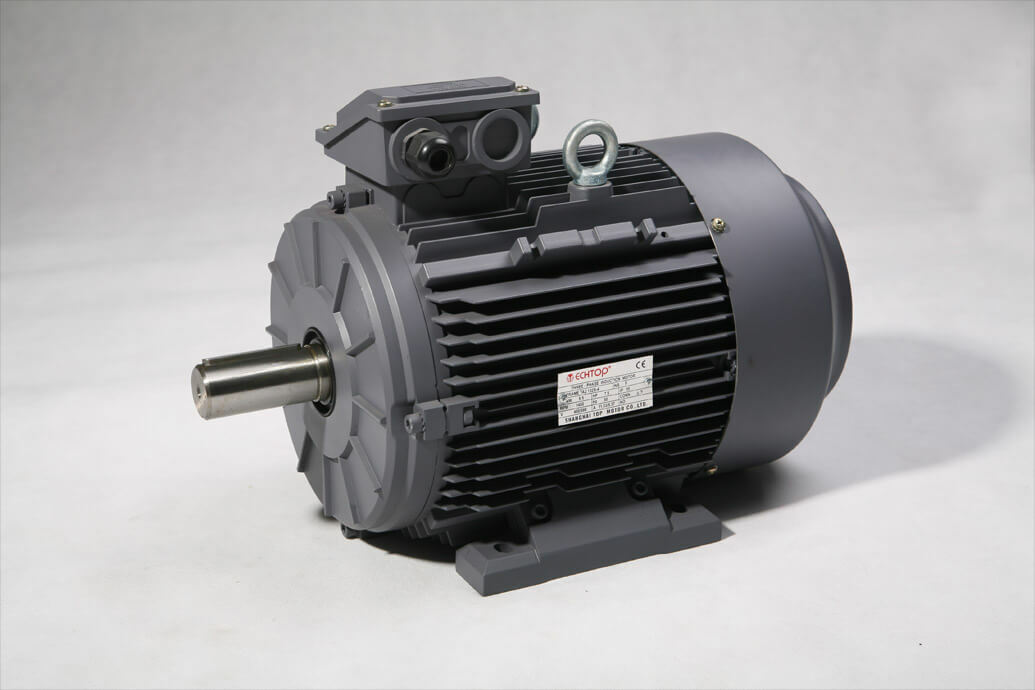

TechTop 0.09kW 0.12 HP Motor 415V 3 Phase 2 Pole, 2715 RPM, Foot Mount TA2A0093TAI

415V Three Phase Aluminium Motor (TA2A0093TAI)

$106.39
