Description

TechTop’s TAIB aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

TAIB braked motors are fitted with Intorq brand direct current brakes and are “fail to safe” design, as the brake will engage when the power is disconnected.

All TechTop TAIB series electric motors are fitted with an emergency hand release.

As standard, TechTop’s TAI series are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0098889
  • Brand TechTop
  • Model Number TA4A018 3TAIBHR
  • Poles 4
  • Mounting Type Foot-Mounted
  • Base RPM 1275
  • IEC Frame Size 63 B
  • Shaft Diameter 11 mm
  • Mounting Position B3
  • Group Code Techtop-TAIB-0.18kw
  • Type Three Phase with Brake
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.18
  • Rated Load (HP) 1/4
  • Series Techtop TAIB
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098889 On Sale

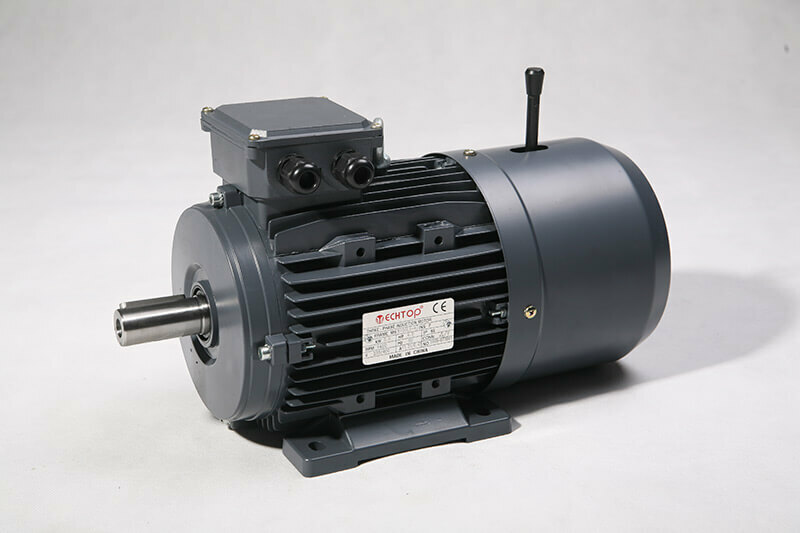

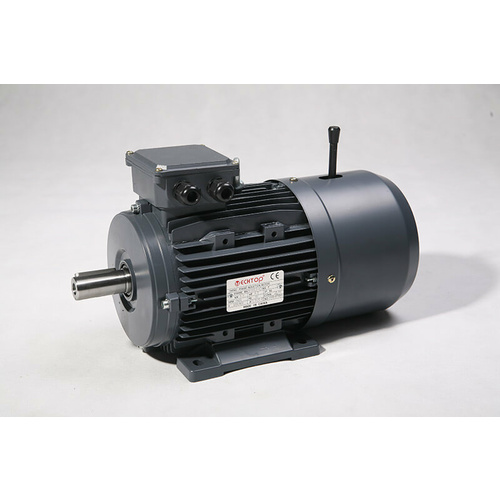

TechTop 0.18kW 1/4 HP Motor 415V 3 Phase 4 Pole, 1275 RPM, Foot Mount TA4A018 3TAIBHR

415V Three Phase Aluminium Brake Motor (TA4A0183TAIBHR)

$515.02
$643.78
