Description

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0098162
  • Brand TechTop
  • Model Number TA4B0156TML/480
  • Poles 4
  • Mounting Type Foot & Flange Mounted
  • Base RPM 1420
  • IEC Frame Size 90 L
  • Shaft Diameter 24 mm
  • Mounting Position B3,B14A
  • Group Code Techtop-TML4-1.5kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V,480 V
  • Rated Load (kW) 1.5
  • Rated Load (HP) 2
  • Series Techtop TML
  • AC Phase Single Phase
  • Current Type AC
SKU: A0098162

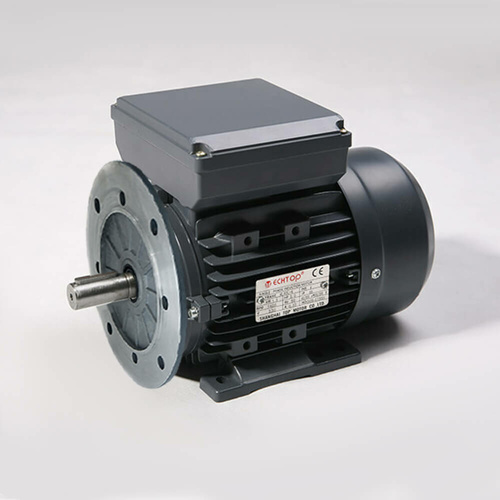

TechTop 1.5kW 2 HP Motor 240/480V Dual Voltage 4 Pole 1420RPM Foot&Flange TA4B0156TML

Dual Voltage Cap Start/Cap Run Motor (TA4B0156TML/480)

$548.20
