Description

***Materials may vary. Please contact AIMS to confirm the Material if it is critical for you*****

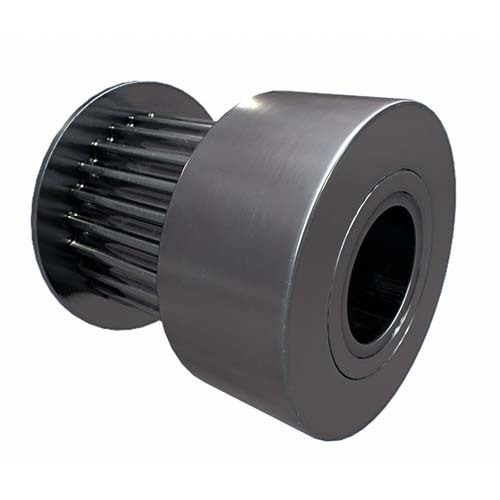

Pilot Bore HTD Timing Belt Pulley

  • HTD Timing Pulleys are available in ranges of 3M and 5M (Pilot Bore).
  • Also available in Taper Lock type, in ranges of 8M and 14M.

Specifications

  • AIMS SKU A0059613
  • Hub Diameter (mm) 12
  • Belt Width (mm) 15
  • Number of Teeth 10
  • Pitch (mm) 3
  • Outer Diameter (mm) 8.79
  • Pitch Circle Diameter (mm) 9.55
  • Boss Diameter (mm) 13
  • Pulley Width (mm) 17
  • Bore Length (mm) 26
  • Flange (mm) 100
  • Group Code 10-3M-15PB
  • Type Pilot Bore Timing Pulley
  • Section 3M
  • Pitch (mm) 3
  • Series HTD
  • Item Type 1F
SKU: A0059613

10 Teeth, 15mm Belt Width 3M HTD Timing Pulley Pilot Bore 10-3M-15PB - Al

Pilot Bore HTD Timing Belt Pulley
