Description

TechTop’s TCI cast iron series motors combine superior electrical characteristics, high quality design and the robust strength of cast iron. This AC induction motor is ideal for all industrial applications.

A unique feature of the TCI series electric motor is its multi-mount design up to 280 frame, allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0099101
  • Brand TechTop
  • Model Number TC2B0224TCI
  • Poles 2
  • Mounting Type Foot & Flange Mounted
  • Base RPM 2890
  • IEC Frame Size 90 L
  • Shaft Diameter 24 mm
  • Mounting Position B3,B5
  • Group Code Techtop-TCI-2.2kw
  • Type Three Phase
  • Material Cast Iron
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 2.2
  • Rated Load (HP) 3
  • Series Techtop TCI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0099101 On Sale

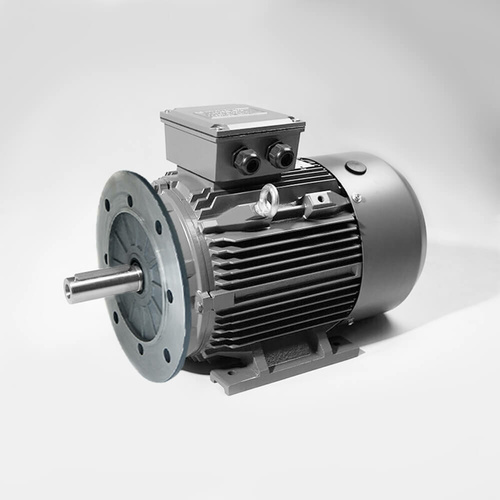

TechTop 2.2kW 3 HP Motor 415V 3 Phase 2 Pole, 2890 RPM, Foot & Flange TC2B0224TCI

415V Three Phase Cast Iron Motor (TC2B0224TCI)

$291.42
$364.27
