38mm Shaft Collar Zinc Plated w/ Single Grub Screw FSC-38 - Finer Power Transmissions

Description

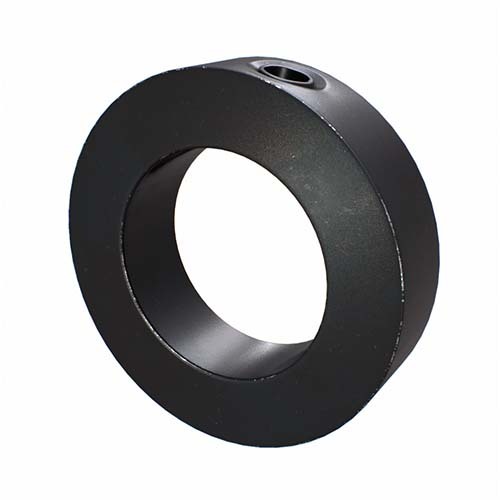

Shaft Collar - Zinc plated

Shaft Collars are ring-shaped components used as mechanical stops, locating components and bearing faces fastened with grub screws.
Simple design
Easy installation
Set screw collars are most effective when used on a shaft made of a material which is softer than the set screw.

Specifications

AIMS SKU A0126710

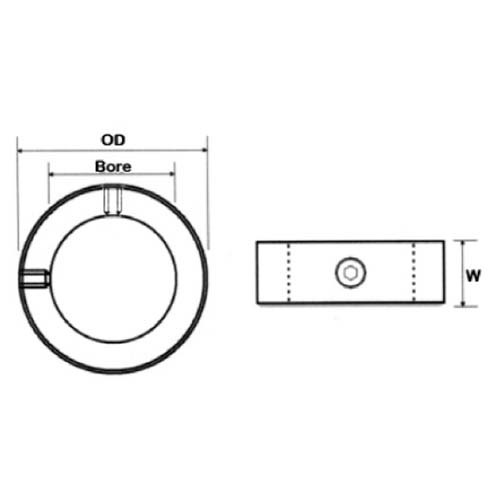

Bore (mm) 38

w (mm) 16

Bore Tolerance +0.01 to 0.05mm

Width Tolerance +0.08 to -0.025

Approx Kg 0.21

O.D. (mm) 56

Screw Size (mm) M8*8

Type Shaft Collar
System of Measurement Metric
Material Finish Zinc Plated

Calculate Shipping

Resources

Technical Data Sheet

Browse other products under

Browse other products by

Reviews

Worked perfectly for intended use

"I purchased these collars for an antenna pole they work perfectly as intended, and are just the right diameter. Great use to reuse items I already have, instead of purchasing a new antenna pole."

- Andrew
