Description

***Materials may vary. Please contact AIMS to confirm the Material if it is critical for you*****

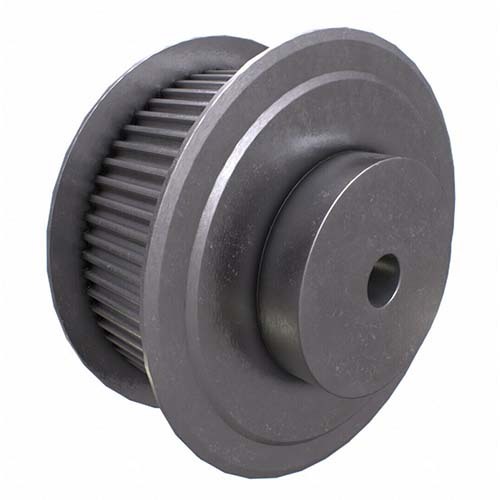

Pilot Bore HTD Timing Belt Pulley

  • HTD Timing Pulleys are available in ranges of 3M and 5M (Pilot Bore).
  • Also available in Taper Lock type, in ranges of 8M and 14M.

Specifications

  • AIMS SKU A0059635
  • Hub Diameter (mm) 11
  • Belt Width (mm) 15
  • Number of Teeth 18
  • Pitch (mm) 3
  • Outer Diameter (mm) 16.43
  • Bore Diameter (B) mm 6
  • Pitch Circle Diameter (mm) 17.19
  • Boss Diameter (mm) 19.5
  • Pulley Width (mm) 19.5
  • Bore Length (mm) 26
  • Flange (mm) 105
  • Type Pilot Bore Timing Pulley
  • Section 3M
  • Pitch (mm) 3
  • Series HTD
  • Item Type 2F
SKU: A0059635

18 Teeth, 15mm Belt Width 3M HTD Timing Pulley Pilot Bore 18-3M-15PB - Al

Pilot Bore HTD Timing Belt Pulley
