Description

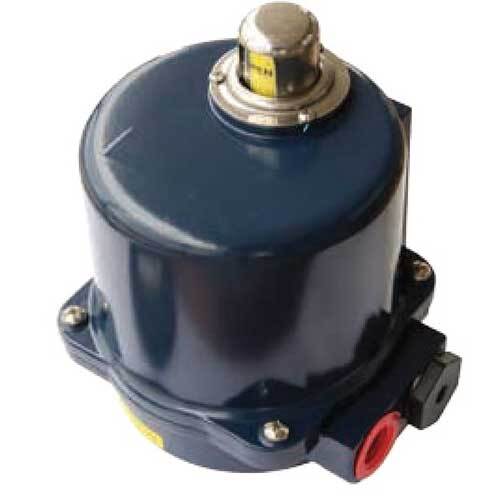

AAP Electric Actuator

  • A combination of motors that can create a movement of the load, or an action requiring a force such as clamping, using an electric motor to create the necessary force.
  • When the electric motor is operating, the hand wheel won't rotate for personal safety purposes.
  • Torque flange: 35 - 150Nm

Specifications

  • AIMS SKU A0081039
  • Brand AAP
  • Model Number VOMA24VDC
  • Torque (Nm) 50

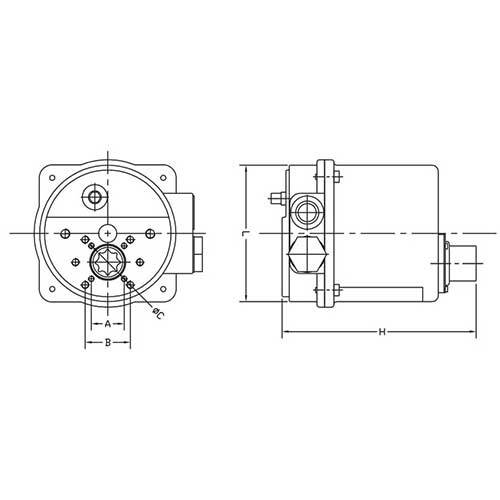

  • B 50
  • Approx. Kg/pc 3
  • C 23
  • A 35
  • H 190
  • Volts 24
  • AC/DC DC
  • L 130
  • Power (watts) 10
  • Speed (Sec/90 deg) 20
SKU: A0081039

AAP 24V DC OM-A Electric Actuator VOMA24VDC

AAP Electric Actuator

$1,215.75
RRP $2,269.41
SAVE $1,053.66 (46%)
