Description

Stainless Steel Butt Weld

  • AAP supplies Stainless Steel butt-weld Fittings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.
  • Stainless Steel Butt Weld Fittings are made from the finest quality stainless steel designed to be dimensionally precise.
  • The advantages of these Fittings are their high tensile strength, robust nature, and rust-free properties.
  • Stainless steel butt-weld Fittings are most commonly used in refinery complexes, chemical production, and petrochemical engineering.
  • Material Specifications - ASTM A182 F316L - ASTM A182 F316.

Specifications

  • AIMS SKU A0080728
  • Brand AAP
  • Model Number SWEF1031625
  • Pipe Size (inch) 1

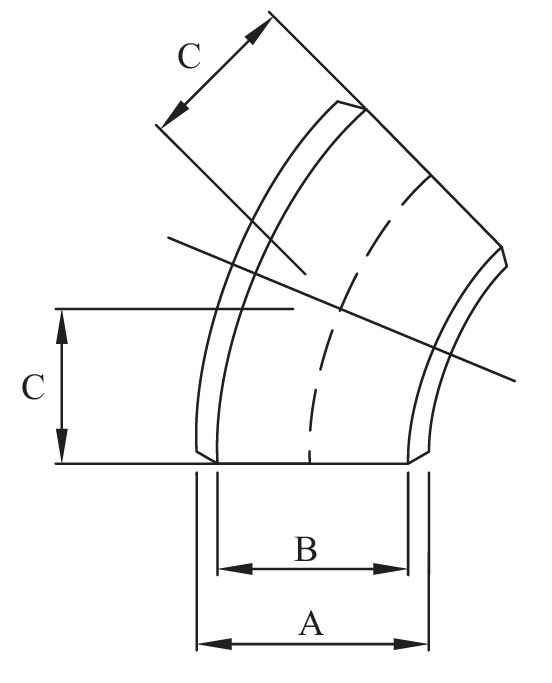

  • Outer Diameter (A) mm 33.4
  • Inner Diameter (B) mm 27.9
  • Pipe Size (mm) 25
  • Approx. Kg/pc 0.1
  • Thickness 2.77
  • Center To End ( C ) 22
  • Type Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 45deg
  • Fitting Schedule/class Schedule 10
  • Fitting Material 316 Stainless Steel
SKU: A0080728 On Sale

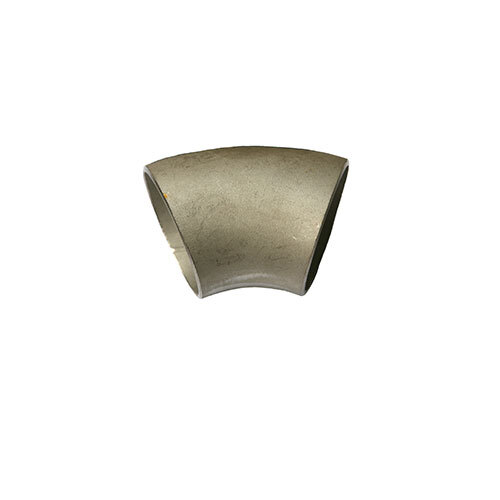

AAP 1", 25mm 45° Elbow L/R Buttweld 316/316L SS Sch 10 SWEF1031625

AAP - Buttweld - Elbow

$6.47
$8.62
