Description

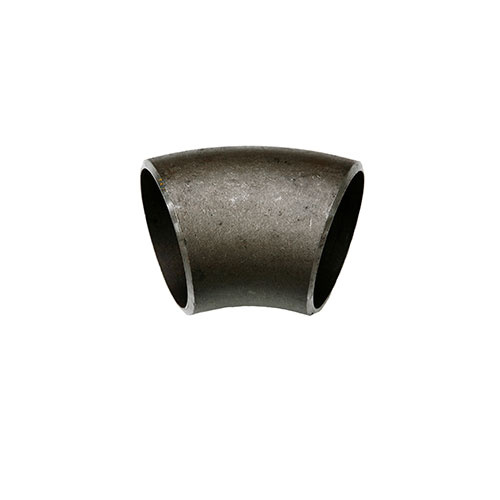

AAP 45° Short Radius Elbow Buttweld Sgp

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078383
  • Brand AAP
  • Model Number WZEF65
  • Pipe Size (inch) 2-1/2
  • Outer Diameter (A) mm 76.3
  • Inner Diameter (B) mm 67.9
  • Center To End (C) mm 69.5
  • Wall Thickness 4.2
  • Approx. Weight kg/pc 0.5
  • Type Long Radius Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 45deg
SKU: A0078383 On Sale

AAP 2-1/2" Long Radius 45° Elbow Buttweld SGP JIS 2311 WZEF65

AAP - 45° Elbow - Buttweld

$5.99
$7.99
