Description

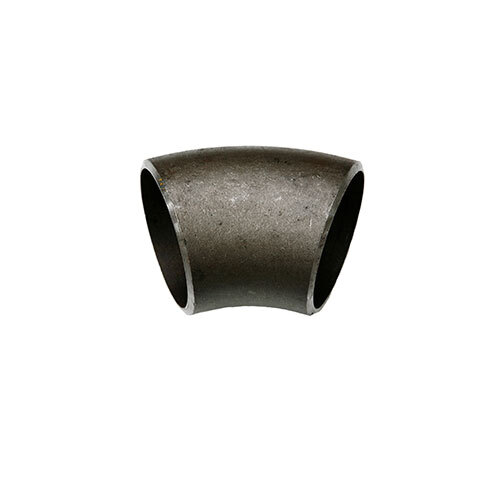

AAP 45° Short Radius Elbow Buttweld Std

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078275
  • Brand AAP
  • Model Number WEF15
  • Pipe Size (inch) 1/2

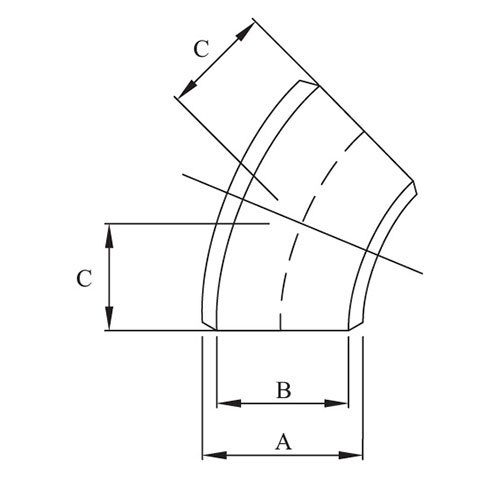

  • Outer Diameter (A) mm 21.3
  • Inner Diameter (B) mm 15.7
  • Center To End (C) mm 15.7
  • Wall Thickness 2.8
  • Approx. Weight kg/pc 0.04
  • Type Long Radius Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 45deg
SKU: A0078275

AAP 1/2" Long Radius 45° Elbow Buttweld STD ASTM A234 WEF15

AAP - 90° Elbow - Buttweld

$1.61
RRP $3.47
SAVE $1.86 (54%)
