Description

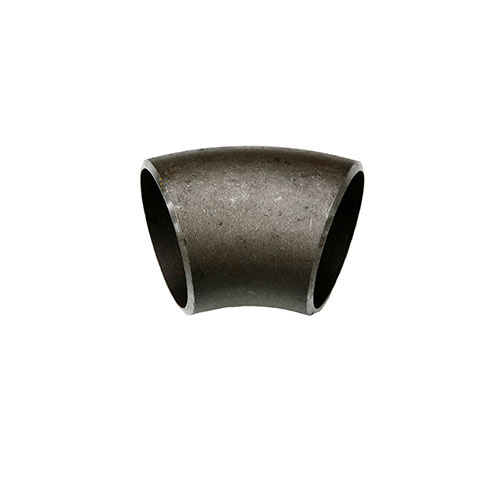

AAP 45° Long Radius Elbow Buttweld X-Stg

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078482
  • Brand AAP
  • Model Number WEF20X
  • Pipe Size (inch) 3/4

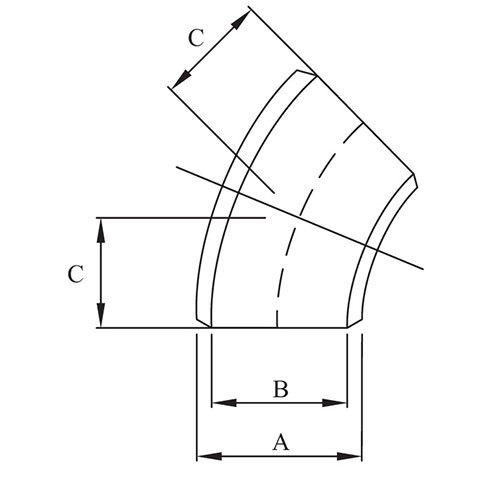

  • Outer Diameter (A) mm 26.7
  • Inner Diameter (B) mm 18.9
  • Center To End (C) mm 19
  • Wall Thickness 3.91
  • Approx. Weight kg/pc 0.1
  • Type Long Radius Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 45deg
SKU: A0078482

AAP 3/4" Long Radius 45° Elbow Buttweld X-Stg ASTM A234 WEF20X

AAP - 45° Elbow - Buttweld

$2.33
RRP $5.04
SAVE $2.71 (54%)
