Description

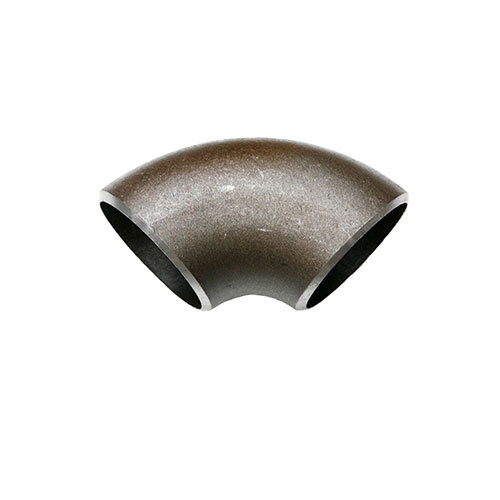

AAP 90° Short Radius Elbow Buttweld Std

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.

The advantages of Buttweld include:

  • Welding a fitting to the pipe means that is permanently leak
  • The continuous metal structure formed between pipe and fitting adds strength to the system.
  • The smoother inner surface and gradual direction flanges reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion.
  • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078261
  • Brand AAP
  • Model Number WE25SR
  • Pipe Size (inch) 1

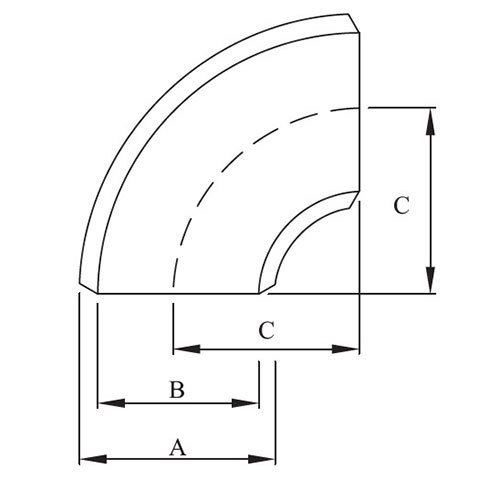

  • Outer Diameter (A) mm 33.4
  • Inner Diameter (B) mm 26.6
  • Center To End (C) mm 25.4
  • Wall Thickness 3.4
  • Approx. Weight kg/pc 0.1
  • Type Short Radius Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 90deg
SKU: A0078261

AAP 1" Short Radius 90° Elbow Buttweld STD ASTM A234 WE25SR

AAP - 90° Elbow - Buttweld

$4.07
RRP $8.77
SAVE $4.70 (54%)
