Description

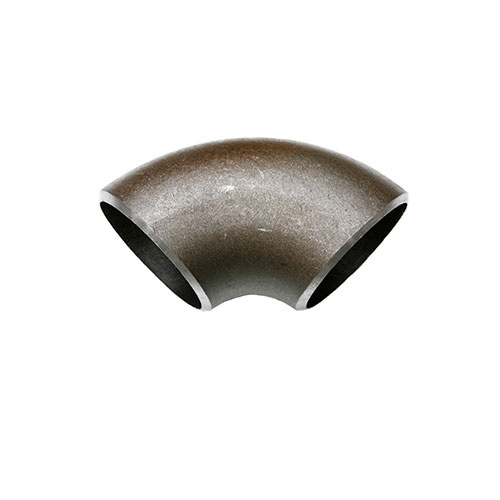

AAP 90° Short Radius Elbow Buttweld X-Stg

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • Smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078474
  • Brand AAP
  • Model Number WE40SRX
  • Pipe Size (inch) 1-1/2

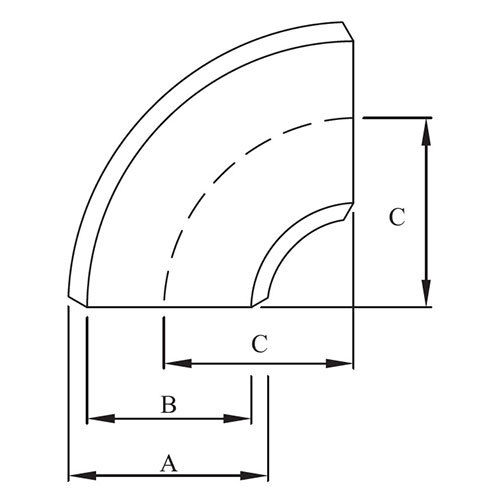

  • Outer Diameter (A) mm 48.3
  • Inner Diameter (B) mm 38.14
  • Center To End (C) mm 38.1
  • Wall Thickness 5.08
  • Approx. Weight kg/pc 0.3
  • Type Short Radius Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 90deg
SKU: A0078474

AAP 1-1/2 " Short Radius 90° Elbow Buttweld X-Stg ASTM A234 WE40SRX

AAP - 90° Elbow - Buttweld

$10.25
RRP $22.08
SAVE $11.83 (54%)
