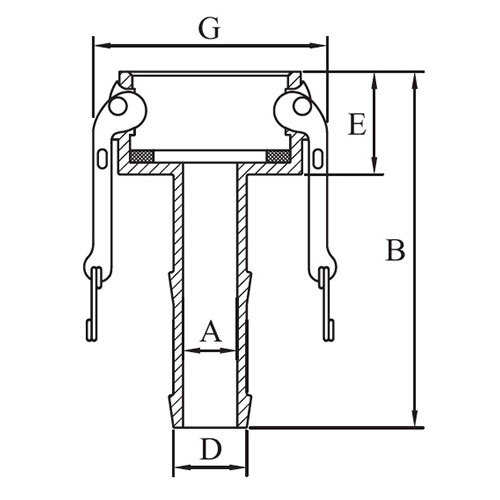

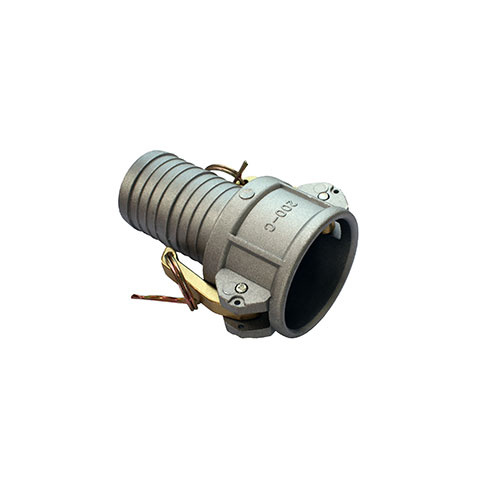

AAP Aluminium Camlock Coupler Type-C x Male Hosebarb

Specifications and Typical of Applications in Aluminum Diecast

• Have Brass Handles.
• Conforming to ASTM B 26B 26M.
• General Use / AG / Industrial.
• Manufactured using the die-casting method.
• Most common/economical of the aluminum flange.

About Camlock

• Camlocks are also known as Cam and Groove Fittings
• The AAP Industries flange of Camlock is manufactured to interchange with all products produced to Mil-Spec A-A 59326.
• Size 1/2" (15mm) and 8" (200mm) fittings are not covered by Mil-Spec A-A 59326, these sizes are to manufactures specification only.
• Used were quick, convenient connection and disconnection of piping and hose are required.
• Industries - irrigation, Pumping, Hose Distributors, Bulk Tankers, Water Carriers, General Industry.
• Medium - Water, Oil, powders, some Hydrocarbons, and Chemicals (check compatibility charts).
• Threads - The threads are cut according to ISO 228.
• Maximum Temperature - NBR (Buna) Gasket 100 degrees Celcius.
• Spare Parts - AAP has available a flange of spare parts to suit the camlocks, such as Brass Handles (code CBH…), Handle Pins (code CP….), and NBR Gaskets (code CGN…).
