Description

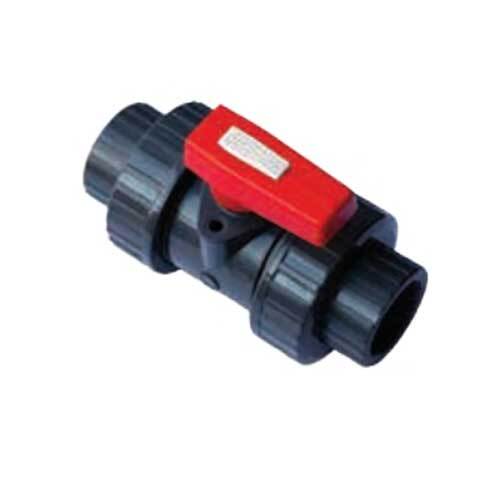

AAP Ball Valve PVC Double Union

  • - Water, Weak acids and alkaline solutions, some corrosive liquids. (Consult Chemical Chart for suitability)



Specifications
Thread AS1722.1
Max Working Temperature 600°C
Cold Working Pressure 150psi




Material Lists

PART
MATERIAL

Body
UPVC

Seal Seat
PTFE

Ball
UPVC

Handle
ABS

O' Ring
VITON



About Ball Valves:

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orificeposition, an indication of the valve position.

Specifications

  • AIMS SKU A0080337
  • Brand AAP
  • Model Number VPVCDU15
  • Pipe Size (inch) 1/2
  • Pipe Size (mm) 15
  • Approx. Kg/pc 0.15

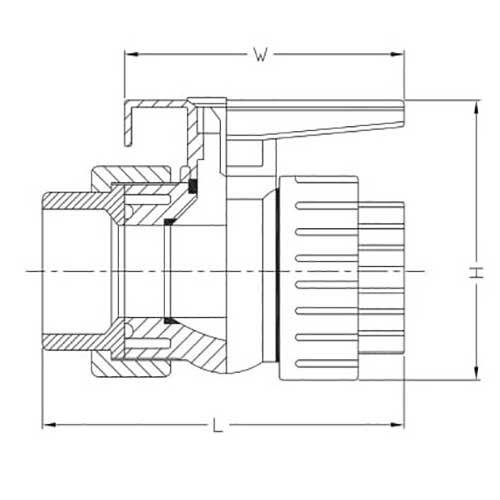

  • Valve Length (l) 101.8
  • Height of handle from Valve (H) 41.5
  • Valve Handle Length (W) 75
  • Type PVC Ball Valve
  • Fitting Material Finish PVC
SKU: A0080337

AAP 15mm, 1/2" Ball Valve PVC Double Union VPVCDU15

AAP PVC Ball Valve

$29.62
