Specifications

AIMS SKU A0080964
Brand AAP
Model Number SSFB15031625
Pipe Size (inch) 1

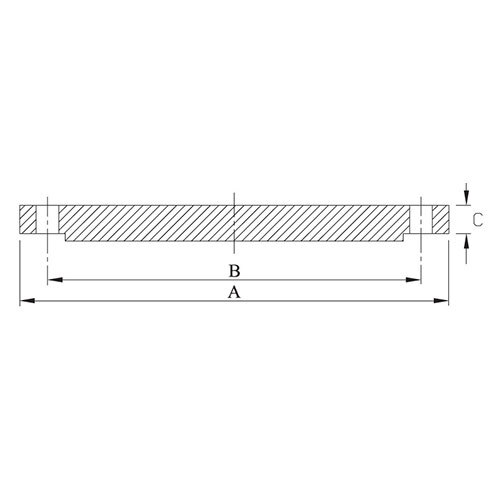

Outer Diameter (A) mm 108
Pipe Size (mm) 25
Holes Diameter 16
No. Of Holes 4
Approx. Kg/pc 0.9
Thickness 14.5
Circle Diameter (B) 79.3
Bolt Size 1/2

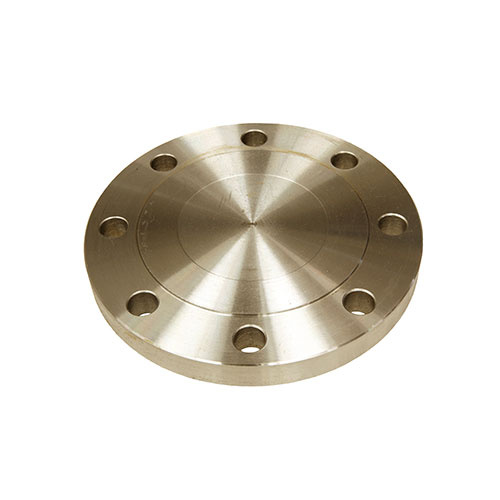

• Type Blind Flange
• Fitting Schedule/class C150
• Fitting Material 316 Stainless Steel
