Description

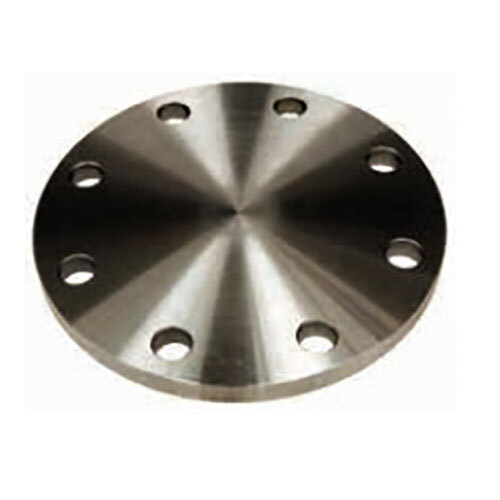

AAP Blind Flat-Faced Flange

  • Standard: AS4087 - Metallic Flanges for Waterworks Purposes (Australian).
  • Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • Marking: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard.

About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, lower-pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves cutting and machining from plate steel.

Specifications

  • AIMS SKU A0079105
  • Brand AAP
  • Model Number 4087BPN2194
  • Pipe Size (inch) 4"
  • Approx. Weight kg/pc 5.89

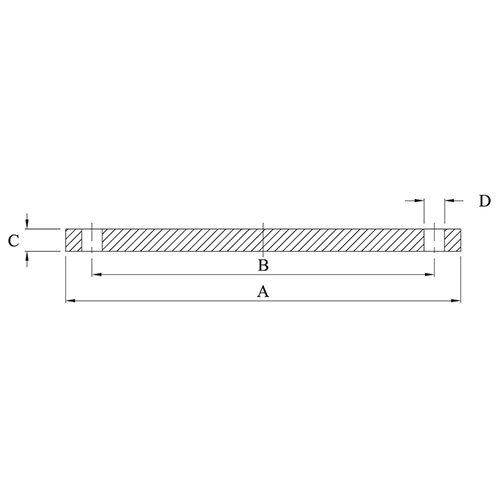

  • Flange Outside Diameter (A) 230
  • Drilling Bolt Circle Diameter (B) 191
  • Drilling No. Of Holes 8
  • Drilling Bolt Size M16
  • Type Blind Flat Faced Flange
SKU: A0079105 On Sale

AAP 4" Blind Flat Faced Flange 4087 PN21 - 4087BPN2194

AAP - Blind Flat Faced Flange

$42.13
$56.17
