Description

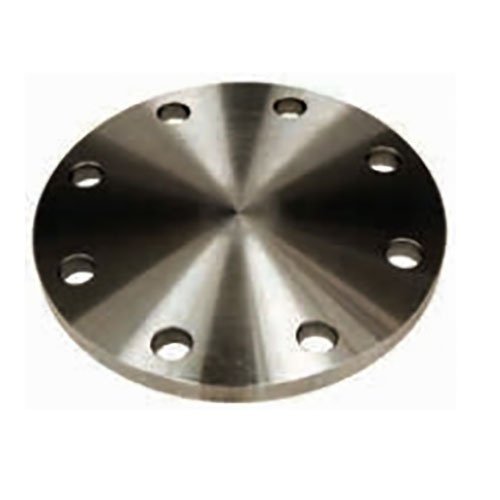

AAP Blind Flat-Faced Flange

  • Standard: AS4087 - Metallic Flanges for Waterworks Purposes (Australian)
  • Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, and Construction.
  • Marking: All flanges when possible will display a heat number, size, table, grade, and dimensional standard

About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, flower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves cutting and machining from plate steel.

Specifications

  • AIMS SKU A0079117
  • Brand AAP
  • Model Number 4087BPN3596
  • Pipe Size (inch) 6"
  • Approx. Weight kg/pc 16.67
  • Flange Outside Diameter (A) 305
  • Drilling Bolt Circle Diameter (B) 260
  • Drilling No. Of Holes 12
  • Drilling Bolt Size M20
  • Type Blind Flat Faced Flange
SKU: A0079117 On Sale

AAP 6" Blind Flat Faced Flange 4087 PN35 - 4087BPN3596

AAP - Blind Flat Faced Flange

$127.10
$169.47
