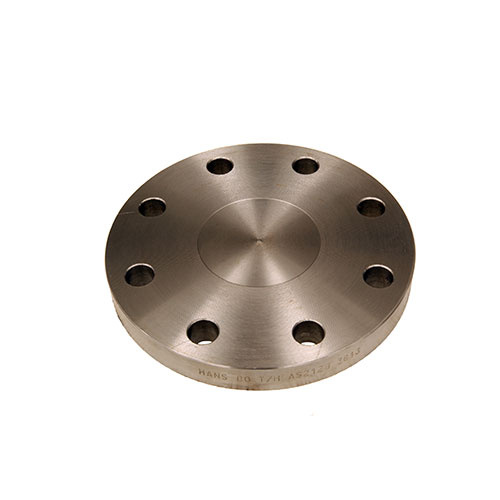

AAP Blind Steel Plate Flange Table-H

Description

Blind Plate Flanges

Standard: AS2129 - Flanges for Pipes, Valves, and Fittings (Australian)
- *AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes, bolt holes are slightly larger to give better clearance

APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.

MARKING: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard

About Plate Steel Flanges:

Plate flanges are mainly used for light-duty, lower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
The manufacturing method involves cFitting and machining from plate steel

Specifications

AIMS SKU A0078800

Brand AAP

Model Number SFBH50

Pipe Size (inch) 2"

Approx. Weight kg/pc 3.07

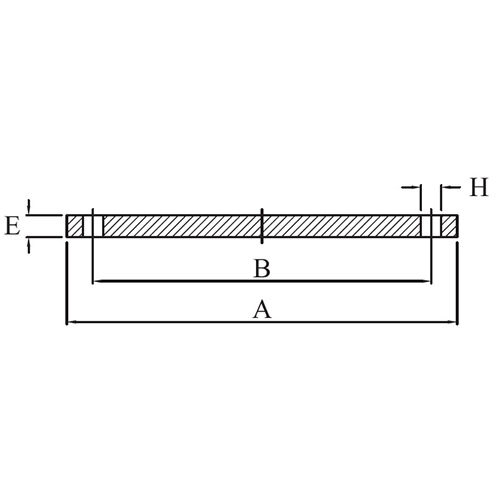

Flange Outside Diameter (A) 165

Flange Thickness (E) 19

Drilling Bolt Circle Diameter (B) 127

Drilling Holes Diameter (H) 18

Drilling No. Of Holes 4

Drilling Bolt Size M16

Type Blind Plate Flange
