AAP Branch Outlet w/ Threaded End BSTP

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: MSS SP-97-2012 - Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends
  • Threads: AS1722.1/ ISO 7 - British Standard Taper Threads (BSPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079565
  • Brand AAP
  • Model Number POT1525B
  • B 31.3
  • Pipe Size (inch) 1/2 X 1
  • Pipe Size (mm) 15 x 25
  • Approx. Kg/pc 0.11
  • Outer Diameter (mm) 29
  • Type Branch Outlet
  • Fitting Thread Form BSPT
  • Pipe Fitting Material Finish Black
SKU: A0079565

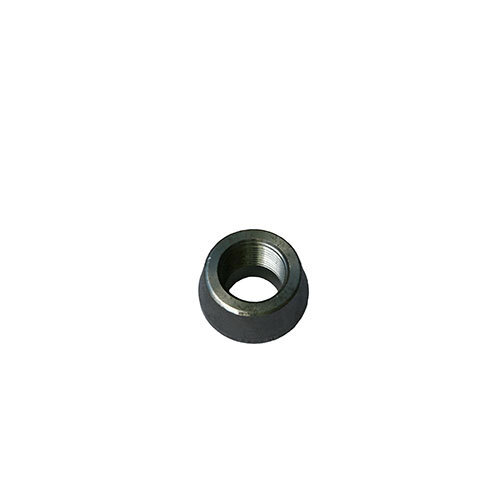

AAP 15 x 25mm High Pressure Branch Outlet w/ Threaded End BSPT Black POT1525B

AAP - Threaded End - Branch Outlet

$10.14
RRP $18.93
SAVE $8.79 (46%)
