Stainless Steel Butt Weld

  • AAP supplies Stainless Steel butt-weld ?ttings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.
  • Stainless Steel Butt Weld Fittings are made from the ?nest quality stainless steel designed to be dimensionally precise.
  • The advantages of these ?ttings are its high tensile strength, robust nature, and rust-free properties.
  • Stainless steel butt-weld ?ttings are most commonly used in re?nery complexes, chemical production, and petrochemical engineering.
  • MATERIAL SPECIFICATIONS - ASTM A182 F316L - ASTM A182 F316

Specifications

  • AIMS SKU A0080668
  • Brand AAP
  • Model Number SWC4031625
  • Pipe Size (inch) 1
  • Pipe Size (mm) 25
  • Approx. Kg/pc 0.1

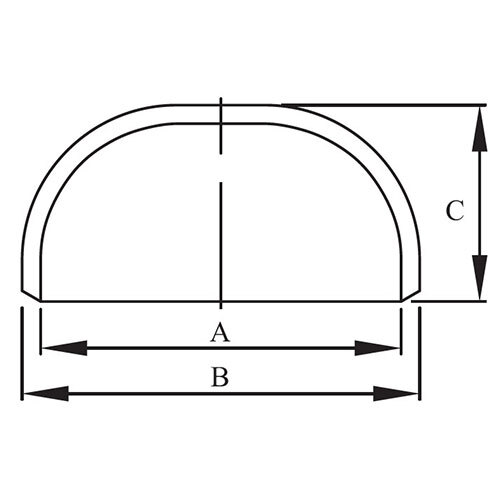

  • Outer Diameter (B) mm 33.4
  • Inner Diameter (A) mm 26.6
  • Thickness 3.4
  • Length ( C ) 38
  • Type Cap
  • Pipe Fitting Connection Buttweld
  • Fitting Schedule/class Schedule 40
  • Fitting Material 316 Stainless Steel
SKU: A0080668 On Sale

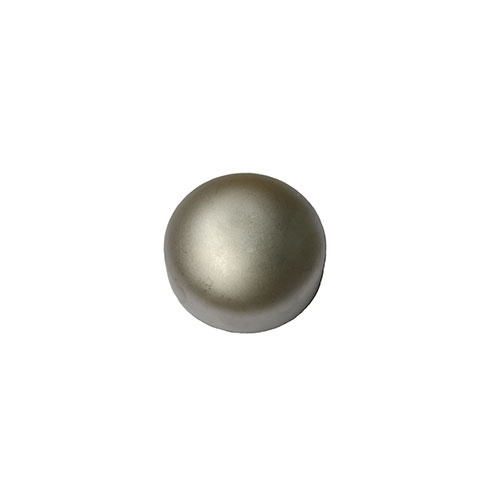

AAP 1", 25mm Cap Buttweld 316/316L SS Sch 40 SWC4031625

AAP - Buttweld - Cap

$7.73
$10.31
