AAP Cast Iron Gate Valve Non- Rising Stem Table-D

Description

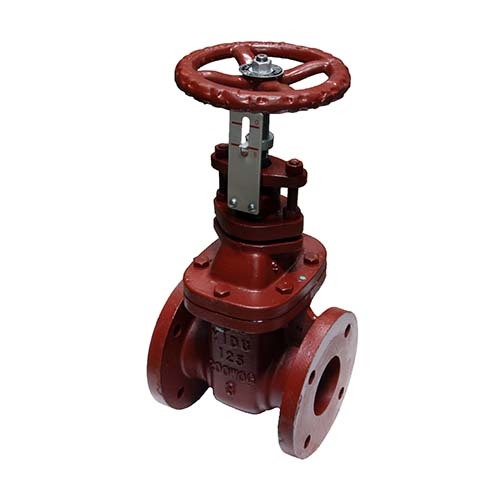

Cast Iron Flanged Solid Wedge Disc Gate Valve Non- Rising Stem (Table D)

Applications - Water, Sewage and neutral liquid applications

Specifications
Flange	AS2129
MAX Temperature	100°C
Cold Working Pressure	1379kPa
Lever Retaining Nut	Brass (Nickel Plated)

Materials
PART	MATERIAL
Body	Cast Iron
Seat Ring	Cast Bronze
Wedge Face Ring	Cast Bronze
Wedge	Cast Iron
Wedge Nut	Cast Bronze
Stem	Brass
Body Gasket	Full Face Nitrile Gasket
Bolt and Nut	Z/P Steel
Bonnet	Cast Iron
Gland Follower Bolt	Steel
Stuf?ng Box Gasket	Te?on
Stuf?ng Box	Cast Iron
Packing	Te?on
Gland Follower	Ductile Iron
Yoke bushing	Cast Brass
Hand wheel	Cast Iron

Specifications

AIMS SKU A0081067

Brand AAP

Model Number VCIG94D

Pipe Size (inch) 4

Pipe Size (mm) 100

Approx. Kg/pc 47

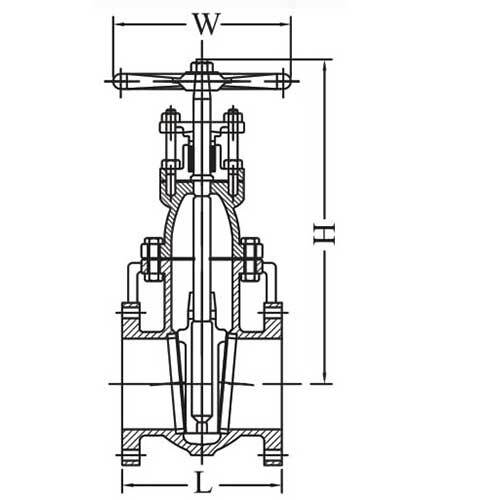

Height of handle from Valve (H) 425

Valve Handle Length (W) 254

Number of holes 4

Hole Diameter 18

Valve Length 229

Type Cast Iron Gate Valve
Fitting Material Finish Cast Iron

Calculate Shipping

Resources

AAP S17 Gate Valves Catalogue
