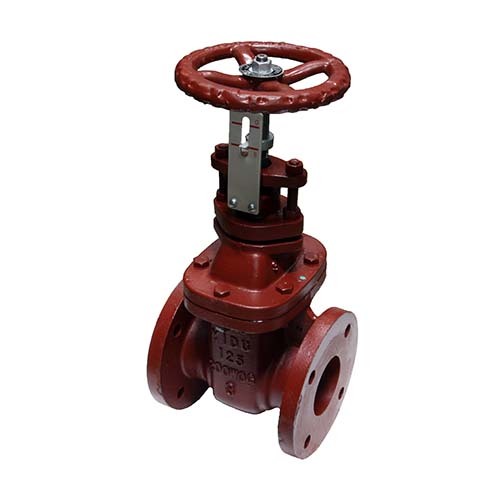

AAP Cast Iron Gate Valve Non- Rising Stem Table-E

Description

Cast Iron Flanged Solid Wedge Disc Gate Valve Non- Rising Stem (Table E)

Applications - Water, Sewage and neutral liquid applications

Specifications
Flange	AS2129
MAX Temperature	100°C
Cold Working Pressure	1379kPa

Materials
PART	MATERIAL
Body	Cast Iron
Seat Ring	Cast Bronze
Wedge Face Ring	Cast Bronze
Wedge	Cast Iron
Wedge Nut	Cast Bronze
Stem	Brass
Body Gasket	Full Face Nitrile Gasket
Bolt and Nut	Z/P Steel
Bonnet	Cast Iron
Gland Follower Bolt	Steel
Stuffing Box Gasket	Teflon
Stuffing Box	Cast Iron
Packing	Teflon
Gland Follower	Ductile Iron
Yoke bushing	Cast Brass
Hand wheel	Cast Iron

Specifications

AIMS SKU A0081058

Brand AAP

Model Number VCIG50E

Pipe Size (inch) 2

Pipe Size (mm) 50

Approx. Kg/pc 18

Height of handle from Valve (H) 313

Valve Handle Length (W) 200

Number of holes 4

Hole Diameter 18

Valve Length 178

Type Cast Iron Gate Valve
Fitting Material Finish Cast Iron
