Description

***Size 2" has a lead time of 20 weeks from receipt of the order. Contact AIMS for further assistance.***

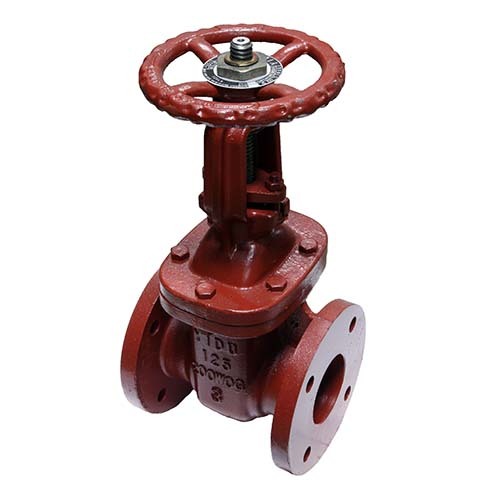

Cast Iron Flanged Solid Wedge Disc Gate Valve Rising Stem

Applications

  • Water, Sewage, and neutral liquid applications

 Specifications


Flange
AS2129

Max Temperature
200°C

Cold Working Pressure
1379kPa

Materials


PART
MATERIAL

Body
Cast Iron

Seat Ring
Cast Bronze

Wedge Face Ring
Cast Bronze

Wedge
Cast Iron

Wedge Nut
Cast Bronze

Stem
Brass

Body Gasket
Graphite/Steel

Bonnet
Cast Iron

Stuffing Box Gasket
Teflon

Stuffing Box
Cast Iron

Packing
Teflon

Gland Follower
Ductile Iron

Yoke bushing
Cast Brass

Hand wheel
Cast Iron

Specifications

  • AIMS SKU A0081071
  • Brand AAP
  • Model Number VCIGRS65E
  • Pipe Size (inch) 2-1/2
  • Pipe Size (mm) 65
  • Approx. Kg/pc 26

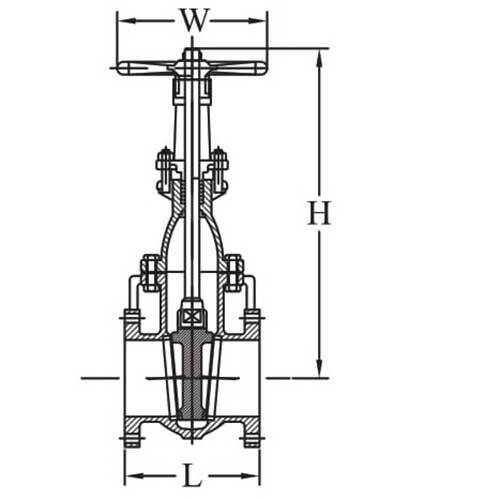

  • Height of handle from Valve (H) 345
  • Valve Handle Length (W) 200
  • Number of holes 4
  • Hole Diameter 18
  • Valve Length 191
  • Type Cast Iron Gate Valve
  • Fitting Material Finish Cast Iron
SKU: A0081071

AAP 2-1/2" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS65E

AAP Cast Iron Gate Valve Rising Stem

$397.40
RRP $741.82
SAVE $344.42 (46%)
