Description

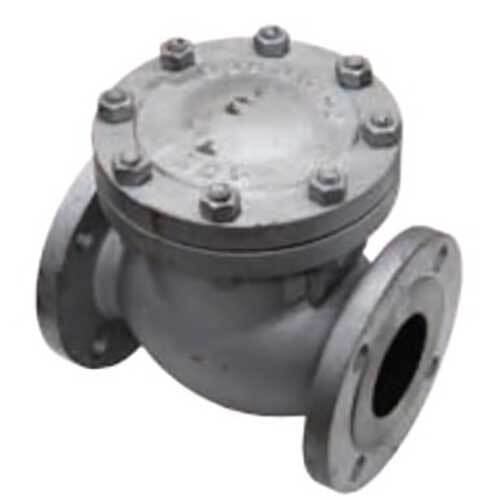

AAP Cast Steel Flanged Check Valve ANSI-150

Application:

  • Steam Oil and Petro Chemical Industry

Specifications:

  • Design - ANSI B16.34
  • Flange - ANSI B16.5
  • Cold Working Pressure - 1960kPa
  • Max Working Temperature - 300°C

Material List:

  • Body - WCB (ASTM A216)
  • Bonnet - WCB (ASTM A216)
  • Disc - 410 (2Cr13)
  • Seat - H/F Stellite
  • Gasket - Graphite

Specifications

  • AIMS SKU A0081095
  • Brand AAP
  • Model Number VSC15050
  • Pipe Size (inch) 2
  • Pipe Size (mm) 50

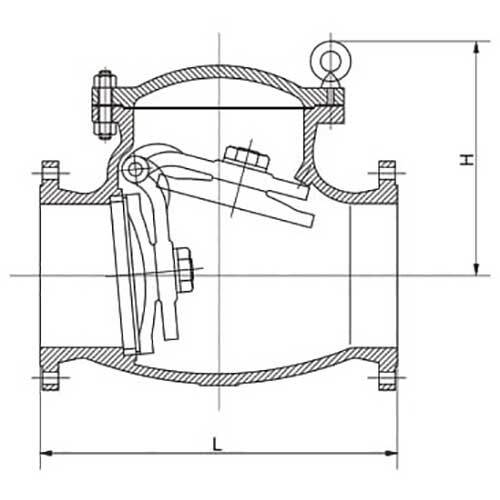

  • Valve Length (l) 203.2
  • Height of handle from Valve (H) 135
  • Number of holes 4
  • Hole Diameter 20
  • Approx Kg/pc 19
  • Type Flanged Check Valve
  • Fitting Material Finish Cast Steel
SKU: A0081095

AAP 50mm, 2" Cast Steel Flanged Check Valve ANSI-150 VSC15050

AAP Check Valve flanged

$366.60
RRP $684.31
SAVE $317.71 (46%)
