AAP Concentric Reducer Buttweld Sgp

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • Smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078346
  • Brand AAP
  • Model Number WZCR6550
  • Pipe Size (inch) 2-1/2 x 2
  • Wall Thickness 4.2
  • Approx. Weight kg/pc 0.5
  • Larger Diameter (A1) mm 76.3
  • Larger Diameter (A2) mm 72.1
  • Smaller Diameter (B1) mm 60.5
  • Smaller Diameter (B2) mm 56.3
  • End To End (C) 88.9
  • Type Concentric Reducer
  • Pipe Fitting Connection Buttweld
SKU: A0078346 On Sale

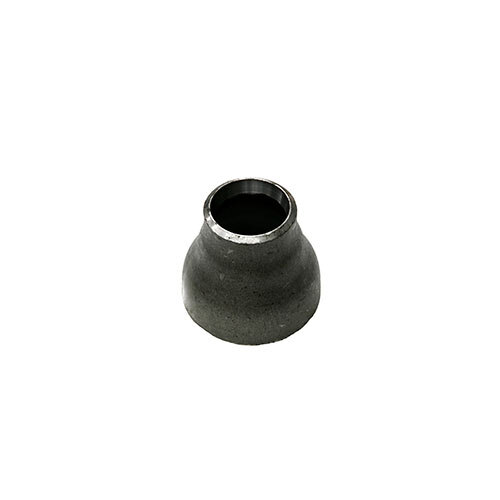

AAP 2-1/2" x 2" Concentric Reducer Buttweld SGP JIS 2311 WZCR6550

AAP - Reducer - Buttweld

$4.73
$6.31
