AAP Concentric Reducer Buttweld Std

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • Smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078138
  • Brand AAP
  • Model Number WCR2015
  • Pipe Size (inch) 3/4 x 1/2
  • Wall Thickness 2.9
  • Approx. Weight kg/pc 0.06

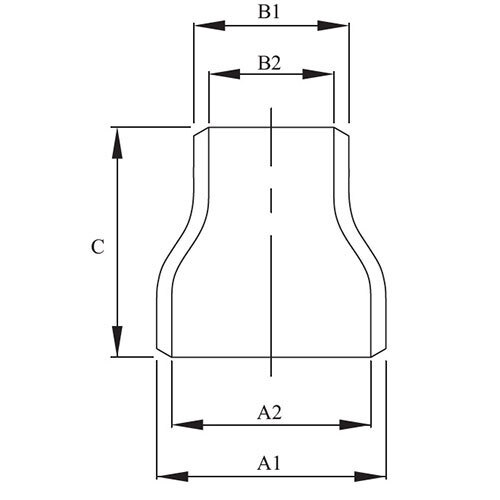

  • Larger Diameter (A1) mm 26.7
  • Larger Diameter (A2) mm 20.9
  • Smaller Diameter (B1) mm 21.3
  • Smaller Diameter (B2) mm 15.7
  • End To End (C) 38.1
  • Type Concentric Reducer
  • Pipe Fitting Connection Buttweld
SKU: A0078138

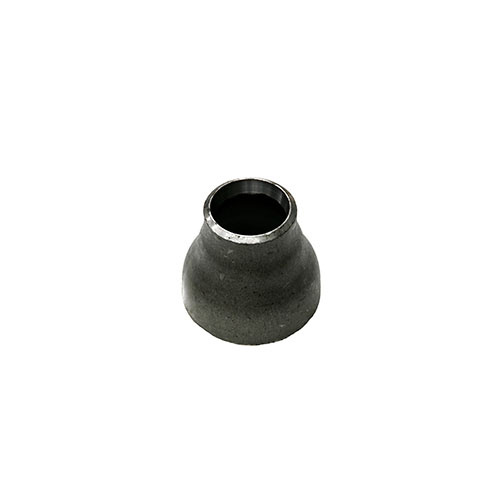

AAP 3/4" x 1/2" Concentric Reducer Buttweld STD ASTM A234 WCR2015

AAP - Reducer - Buttweld

$3.00
RRP $6.46
SAVE $3.46 (54%)
