Description

AAP Coupling - Threaded BSPT Galvanised

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Threads: AS1722.1/ ISO 7 - British Standard Taper Threads (BSPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size
  • finishing: Available in Black, Hot-Dipped, Stainless Steel

Specifications

  • AIMS SKU A0079311
  • Brand AAP
  • Model Number PCP20BG

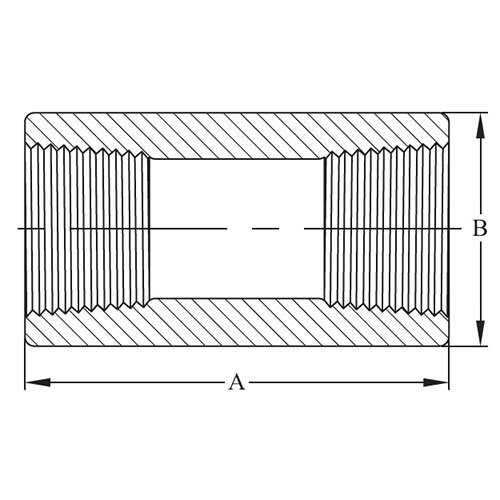

  • B 35
  • Length (A) 51
  • Pipe Size (inch) 3/4
  • Pipe Size (mm) 20
  • Approx. Kg/pc 0.19
  • Type Threaded Coupling
  • Fitting Thread Form BSPT
  • Pipe Fitting Material Finish Galvanised
SKU: A0079311 On Sale

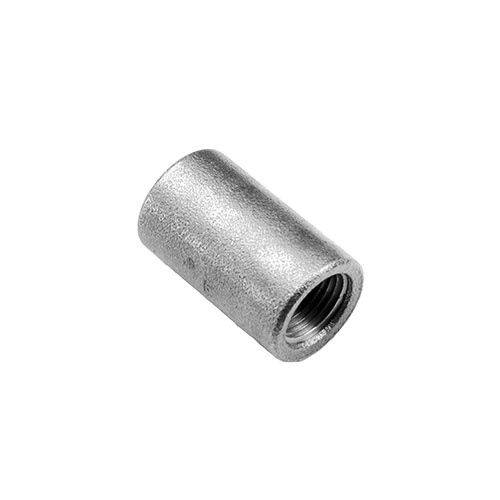

AAP 3/4", 20mm High Pressure Threaded Coupling BSPT Gal PCP20BG

AAP - Coupling - Threaded

$4.79
$6.38
