AAP EPDM Rubber Bellow Table-E

• Standard: ASTM Designation D1418-64 - EPDM / AS2129 'E'
• Temperature: -30°C + 120°C
• Composition: Ethylene-propylene- dieneterpolymer
• Generally Resistant: Animal and vegetable oils, ozone, strong and oxidizing chemicals
• Generally affected or attacked: Mineral oils and solvents, aromatic hydrocarbons
• Applications: Air, Compressed Air, Water, Sea Water, Hot Water, Weak Acid
• Bursting Pressure: 6000kPa
• Vacuity: 86.7 kPa

About Rubber Bellows

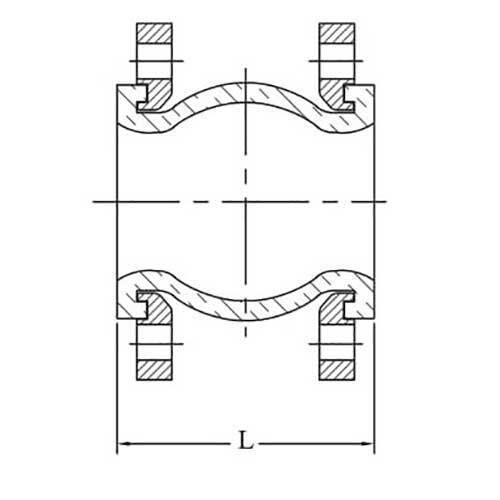

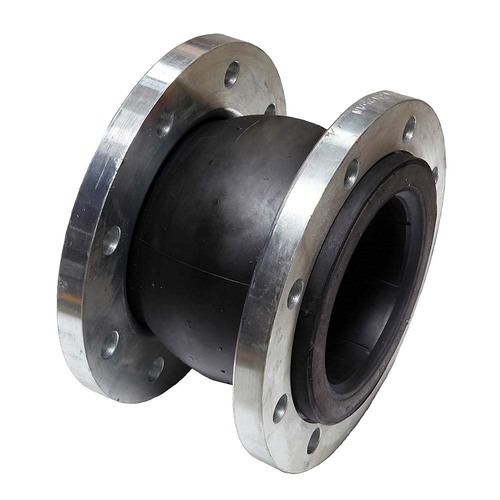

• A Rubber bellow is a flexible jointmade from heat-resisting synthetic elastomers and molded in a spherical shape with metal floating flanges.
• Rubber Bellows (Flexible Rubber Joints) are installed in piping systems to absorb movements in three directions:
  • Axial - the movement of elongation and compression along the centre line
  • Lateral - offset movement from the centre line
  • Angular - offset bending about the centre line
