Description

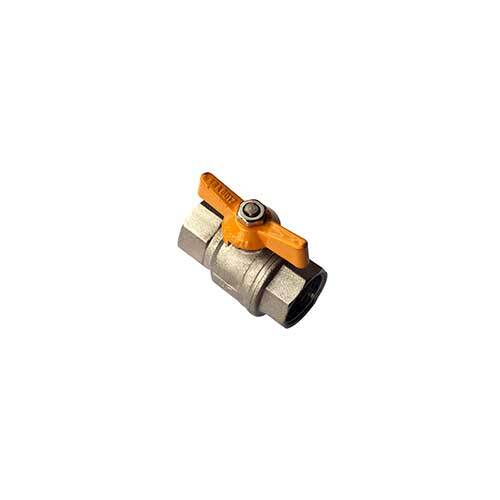

AAP Gas Ball Valve w/ T-Handle

For low to medium gas applications. Can also be used for certain chemicals and oils

MATERIALS
PART	MATERIAL
Body	Brass (Nickel Plated)
Seat Retainer	Brass (Nickel Plated)
Seat	P.T.F.E.
Ball	Brass (Chromium plated)
Stem	Brass
Gland	Brass
Packing	Viton (Double O-Ring)
Lever	Stainless Steel (Plastic Coated)
Lever Retaining Nut	Brass (Nickel Plated)

About Ball Valves:

A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
When the orifice is in line with both ends of the valve flow will occur.
When the valve is closed the orifice is perpendicular to the ends of the valve.
The lever/handle will be in line with the orifice position, an indication of the valve position.
