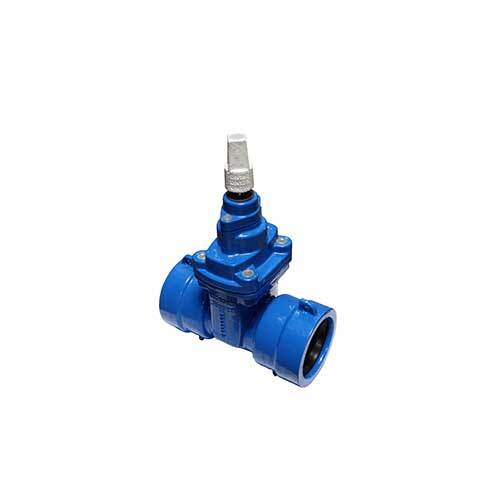

Resilient Seat Gate Valves
- Certified to AS/NZS:2638:2011
- AAP Standards Mark License - SMKP20171.4 This license covers DN80-DN600 valves
- Certified to AS4020 - Suitable for contact with drinking water WSAA Product Appraisal Report 11/26
- Sydney Water Approval - No. 200808
- Yarra Valley Water Authorisation - Ref. YVW 12/11 City West Water CWW 12/596
- South East Water SEW 12/0117
- Hunter Water Corporation HWC 2012-35/49/1
Applications: Water, sewage and neutral liquid applications
“The Valves are distinguished by Whitecap for Anticlockwise and Redcap for Clockwise”
For buried applications is recommended installation complies with Australian Standard - AS/NZS 2566.2
N.B DN50 and DN65 are not covered by AS2638.2
|
Specifications
|
|
Max Working Temperature
|
40°C
|
|
Cold Working Pressure
|
1600kPa
|
|
Design
|
AS2638.2*
|
|
Flanged Drilling T/C
|
AS4087
|
|
Flanged Drilling T/E
|
AS2129
|
|
Socket Ends
|
AS2280
|
|
Coating Thickness
|
AS4158
|
|
Materials
|
|
PART
|
MATERIAL
|
|
Body
|
Ductile Iron (epoxy resin coating)
|
|
Bonnet
|
Ductile Iron (epoxy resin coating)
|
|
Wedge
|
Ductile Iron (bonded Rubber)
|
|
Stem
|
431 Stainless Steel
|
|
O'Ring
|
EPDM
|
|
Seal Bushing
|
EPDM
|
