Description

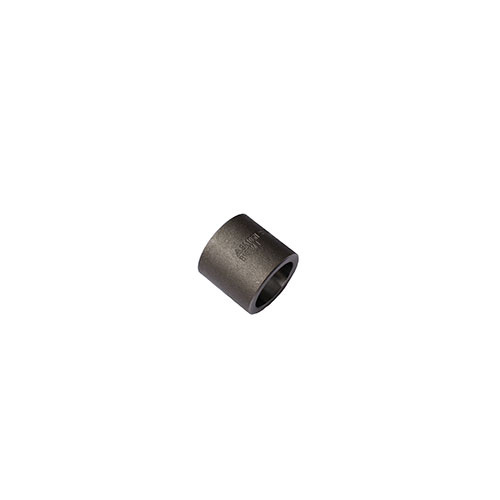

AAP Half Coupling Socket Weld

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079273
  • Brand AAP
  • Model Number PCH10S

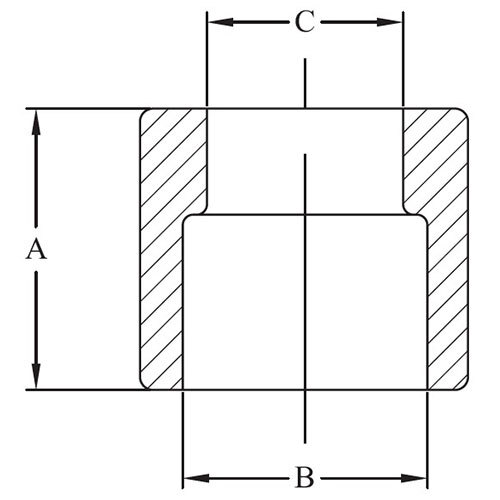

  • B 17.6
  • Length (A) 25.5
  • Pipe Size (inch) 3/8
  • Pipe Size (mm) 10
  • Approx. Kg/pc 0.07
  • C 11.8
  • Socket Bore Diameter (B) 18
  • Bore Diameter Of Fittings ( C ) 13.3
  • Type Socket Weld Half Coupling
  • Pipe Fitting Connection Socket Weld
SKU: A0079273 On Sale

AAP 3/8", 10mm High Pressure Half Coupling Socket Weld PCH10S

AAP - Socket Weld - Half Coupling

$1.90
