Description

Stainless Steel 316 Threaded Fittings

  • AAP "150lb" stainless steel Fittings are made from grade 316 stainless steel. 150lb refers to the maximum working pressure/ temperature of 150psi saturated steam.
  • Applications - Stainless Steel Fittings are most suitable for marine, pumping, commercial, domestic chemical, and irrigation applications

Applicable Standards:

  • AS 1722.2 - Pipe Threads of Whitworth Form (Fastening thread)
  • ASTM A351 - Standard specification of Castings, Austenitic for pressure-containing parts
  • ASTM A182 - Standard specification for forged or rolled alloy and stainless steel pipe ?anges, forged Fittings, valves, and parts for high-temperature parts.
  • ISO 4144 - Pipework - Stainless Steel Fittings Threaded in Accordance with ISO7 - 1

About Stainless Steel:

  • Stainless steel can be defined as a steel alloy that has a minimum chromium level of 11% of its mass.
  • Stainless steel Fittings are used when the properties of steel and resistance to corrosion are required.

Specifications

  • AIMS SKU A0076399
  • Brand AAP
  • Model Number SSHN08

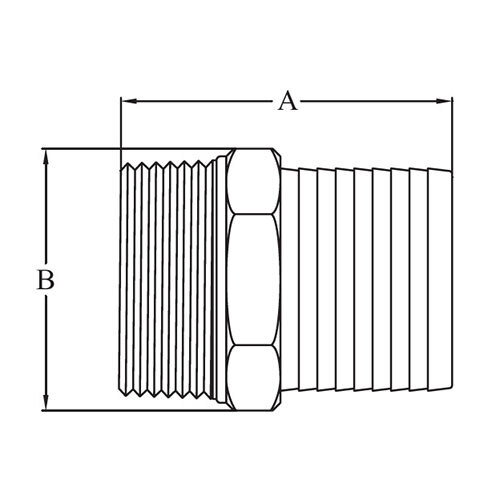

  • Length (A) 43
  • Pipe Size (inch) 1/4
  • Pipe Size (mm) 8
  • Approx. Kg/pc 0.02
  • Hex Head Width Flat (B) 16
  • Type Hose Nipple
  • Material 316 Stainless Steel
SKU: A0076399

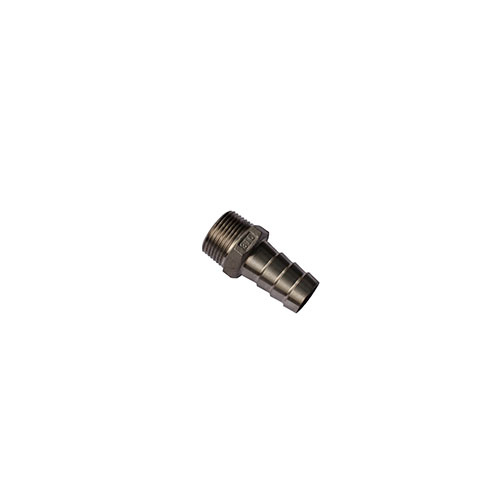

AAP 1/4", 8mm Hose Nipple BSP 316 Stainless Steel SSHN08

AAP - Hose Nipple

$1.55
RRP $1.93
SAVE $0.38 (20%)
